Page 33 - Jupiter Product Guide 2024 Rev M

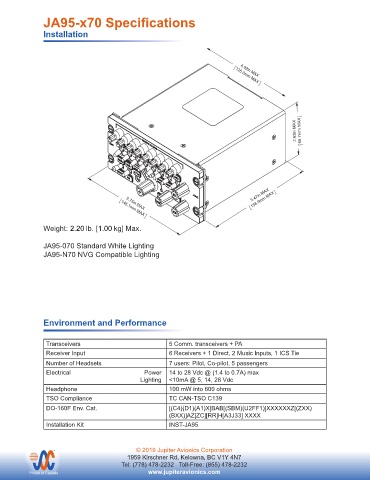

JA95-x70 Specifications

Installation 125.0mm MAX

4.92in MAX

2.63in MAX 66.7mm MAX

5.47in MAX
138.9mm MAX

5.75in MAX
146.1mm MAX
Weight: ?.?? lb. [?.?? kg] Max.
2.20
1.00
JA95-070 Standard White Lighting
JA95-N70 NVG Compatible Lighting
UNLESS OTHERWISE SPECIFIED PREPARED TAT
DIMENSIONS ARE IN INCHES
ANGLES ARE IN DEGREES
TOLERANCES: JAC
1 DEC PLACE: 0.1
2 DEC PLACE: 0.01 CHECKED 11-14-16 TITLE
3 DEC PLACE: 0.005 TAT
ANGLES: 0.5 DEG Audio Controller with RX Volume Controls
JAC
APPROVED 11-14-16 NCAGE CODE PART NO. SHEET
KDV L00N3 JA95-070 1/1
MATERIAL: N/A CONFIDENTIAL & PROPRIETARY DOC. NO.
JA95-070 Fabrication Rev A.SLDDRW
TO JUPITER AVIONICS CORP.
N/A
FINISH:
Environment and Performance DRAWING NOT TO SCALE
JUPITER AVIONICS TEMPLATE SOLIDWORKS LANDSCAPE SIZEA REV B.DRWDOT
Transceivers 5 Comm. transceivers + PA
Receiver Input 6 Receivers + 1 Direct, 2 Music Inputs, 1 ICS Tie
Number of Headsets 7 users: Pilot, Co-pilot, 5 passengers
Electrical Power 14 to 28 Vdc @ (1.4 to 0.7A) max
Lighting <10mA @ 5, 14, 28 Vdc
Headphone 100 mW into 600 ohms
TSO Compliance TC CAN-TSO C139
DO-160F Env. Cat. [(C4)(D1)(A1)X]BAB[(SBM)(U2FF1)]XXXXXXZ[(ZXX)
(BXX)]AZ[ZC][RR]H[A3J33] XXXX
Installation Kit INST-JA95
