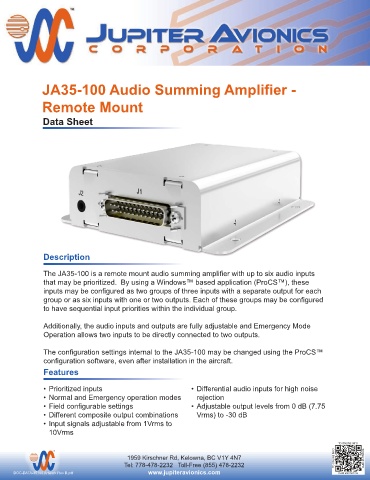

JA35-100 Audio Summing Amplif i er -

Remote Mount

Data Sheet

Description

The JA35-100 is a remote mount audio summing amplifier with up to six audio inputs
that may be prioritized. By using a Windows™ based application (ProCS™), these
inputs may be configured as two groups of three inputs with a separate output for each
group or as six inputs with one or two outputs. Each of these groups may be configured
to have sequential input priorities within the individual group.

Additionally, the audio inputs and outputs are fully adjustable and Emergency Mode
Operation allows two inputs to be directly connected to two outputs.

The configuration settings internal to the JA35-100 may be changed using the ProCS™
configuration software, even after installation in the aircraft.

Features

• Prioritized inputs • Differential audio inputs for high noise
• Normal and Emergency operation modes rejection
• Field configurable settings • Adjustable output levels from 0 dB (7.75
• Different composite output combinations Vrms) to -30 dB
• Input signals adjustable from 1Vrms to
10Vrms
