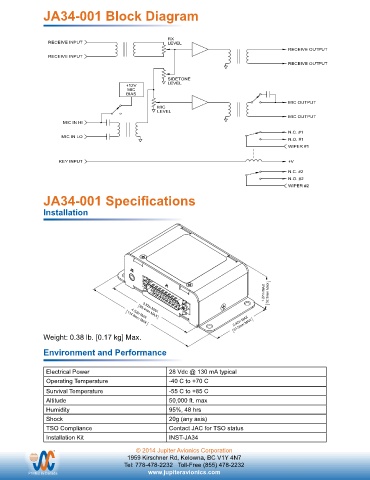

Page 87 - Jupiter Product Guide 2024 Rev M

JA34-001 Block Diagram

RX
RECEIVE INPUT LEVEL
RECEIVE OUTPUT
RECEIVE INPUT
RECEIVE OUTPUT

SIDETONE
+12V LEVEL
MIC
BIAS
MIC OUTPUT
MIC
LEVEL
MIC OUTPUT
MIC IN HI
N.C. #1
MIC IN LO
N.O. #1
WIPER #1

KEY INPUT +V
N.C. #2
N.O. #2
WIPER #2
JA34-001 Specifications

Installation

1.27in MAX 32.3mm MAX

3.52in MAX
89.4mm MAX
2.42in MAX
4.52in MAX
61.5mm MAX
114.8mm MAX
Weight: 0.38 lb. [0.17 kg] Max.
Environment and Performance

28 Vdc @ 130 mA typical
Electrical Power UNLESS OTHERWISE SPECIFIED PREPARED TAT
DIMENSIONS ARE IN INCHES
ANGLES ARE IN DEGREES
TOLERANCES:
Operating Temperature 1 DEC PLACE: 0.1 CHECKED TITLE
-40 C to +70 C
0.01
2 DEC PLACE:
3 DEC PLACE: 0.005 Universal Radio Adapter
ANGLES:
0.5 DEG
Survival Temperature -55 C to +85 C
Altitude APPROVED NCAGE CODE PART NO. SHEET
50,000 ft. max
1/1
JA34-001
L00N3
Humidity MATERIAL: N/A CONFIDENTIAL & PROPRIETARY DOC. NO.
95%, 48 hrs
TO JUPITER AVIONICS CORP.
FINISH: N/A DRAWING NOT TO SCALE JA34-001 3D Model Rev C.SLDDRW
Shock 20g (any axis)
JUPITER AVIONICS TEMPLATE SOLIDWORKS LANDSCAPE SIZEA REV B.DRWDOT
TSO Compliance Contact JAC for TSO status
Installation Kit INST-JA34
