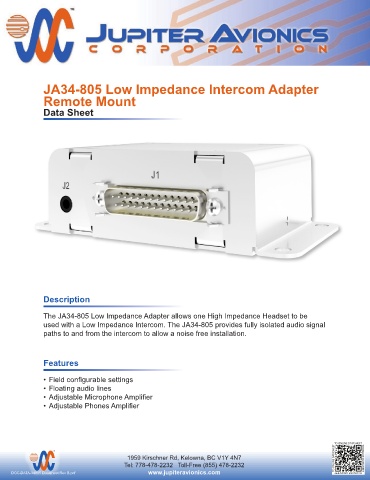

JA34-805 Low Impedance Intercom Adapter
Remote Mount
Data Sheet
Description
The JA34-805 Low Impedance Adapter allows one High Impedance Headset to be
used with a Low Impedance Intercom. The JA34-805 provides fully isolated audio signal
paths to and from the intercom to allow a noise free installation.
Features
• Field configurable settings
• Floating audio lines
• Adjustable Microphone Amplifier
• Adjustable Phones Amplifier
