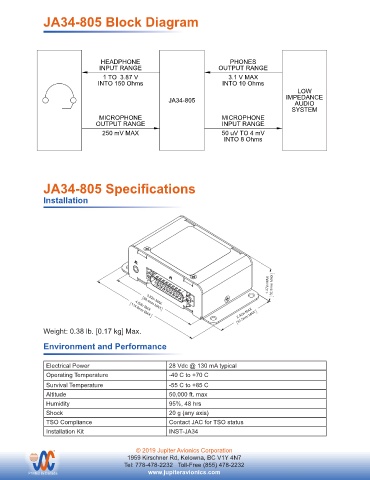

JA34-805 Block Diagram

HEADPHONE PHONES
INPUT RANGE OUTPUT RANGE
1 TO 3.87 V 3.1 V MAX
INTO 150 Ohms INTO 10 Ohms
LOW
JA34-805 IMPEDANCE
AUDIO
SYSTEM
MICROPHONE MICROPHONE
OUTPUT RANGE INPUT RANGE
250 mV MAX 50 uV TO 4 mV
INTO 8 Ohms

JA34-805 Specifications

Installation

1.27in MAX 32.3mm MAX

3.52in MAX
89.4mm MAX
2.42in MAX
4.52in MAX
61.5mm MAX
114.8mm MAX
Weight: 0.38 lb. [0.17 kg] Max.
Environment and Performance

PREPARED
TAT
Electrical Power UNLESS OTHERWISE SPECIFIED 28 Vdc @ 130 mA typical
DIMENSIONS ARE IN INCHES
ANGLES ARE IN DEGREES
TOLERANCES: JAC
Operating Temperature 1 DEC PLACE: 0.1 -40 C to +70 C TITLE
CHECKED
08-14-18
0.01
2 DEC PLACE:
3 DEC PLACE:
0.5 DEG
ANGLES: 0.005 TAT Low Impedance Intercom Adapter - Remote Mount
Survival Temperature -55 C to +85 C
JAC
APPROVED 08-15-18 NCAGE CODE PART NO. SHEET
KDV
Altitude 50,000 ft. max L00N3 JA34-805 1/1
CONFIDENTIAL & PROPRIETARY DOC. NO.
Humidity MATERIAL: N/A 95%, 48 hrs JA34-805 3D Model Rev A.SLDDRW
TO JUPITER AVIONICS CORP.
N/A
FINISH:
DRAWING NOT TO SCALE
JUPITER AVIONICS TEMPLATE SOLIDWORKS LANDSCAPE SIZEA REV B.DRWDOT
Shock 20 g (any axis)
TSO Compliance Contact JAC for TSO status
Installation Kit INST-JA34
