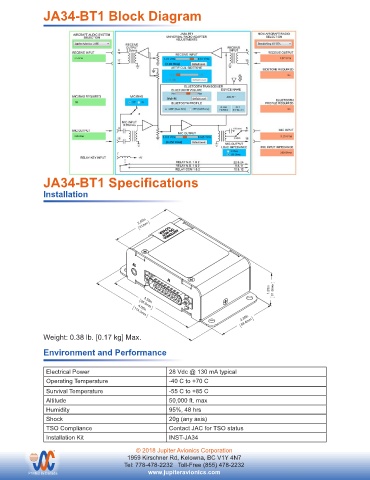

Page 91 - Jupiter Product Guide 2025 Rev N

JA34-BT1 Block Diagram

2.5 Vrms

No

JA34-BT1
CLEAR SET
PAIRING DEFAULTS No

0.25 Vrms

JA34-BT1 Specifications

Installation

2.40in
61mm

1.25in 31.8mm

3.50in
88.9mm
4.50in
114.3mm
2.30in
58.4mm
Weight: 0.38 lb. [0.17 kg] Max.

Environment and Performance

Electrical Power UNLESS OTHERWISE SPECIFIED PREPARED TAT
28 Vdc @ 130 mA typical
Operating Temperature DIMENSIONS ARE IN INCHES JAC
-40 C to +70 C
ANGLES ARE IN DEGREES
TOLERANCES:
1 DEC PLACE: 0.1 CHECKED 04-23-14 TITLE
2 DEC PLACE:
0.01
0.5 DEG-55 C to +85 C
Survival Temperature 3 DEC PLACE: 0.005 TAT Universal Audio Adapter with Bluetooth
ANGLES:
JAC
Altitude 50,000 ft. max NCAGE CODE PART NO. SHEET
04-23-14
APPROVED
Humidity MATERIAL: N/A 95%, 48 hrs KDV L00N3 JA34-BT1 1/1
CONFIDENTIAL & PROPRIETARY DOC. NO.
TO JUPITER AVIONICS CORP.
Shock FINISH: N/A 20g (any axis) JA34-BT1 3D Model Rev A.SLDDRW
DRAWING NOT TO SCALE
JUPITER AVIONICS TEMPLATE SOLIDWORKS LANDSCAPE SIZEA REV B.DRWDOT
TSO Compliance Contact JAC for TSO status
Installation Kit INST-JA34
