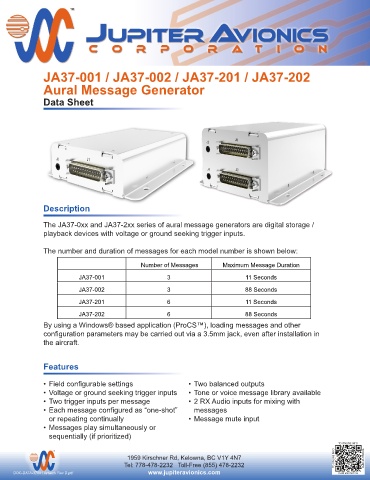

Page 92 - Jupiter Product Guide 2024 Rev M

JA37-001 / JA37-002 / JA37-201 / JA37-202

Aural Message Generator

Data Sheet

Description

The JA37-0xx and JA37-2xx series of aural message generators are digital storage /
playback devices with voltage or ground seeking trigger inputs.

The number and duration of messages for each model number is shown below:

Number of Messages Maximum Message Duration
JA37-001 3 11 Seconds

JA37-002 3 44 Seconds
JA37-201 6 11 Seconds

JA37-202 6 44 Seconds
By using a Windows® based application (ProCS™), loading messages and other
configuration parameters may be carried out via a 3.5mm jack, even after installation in
the aircraft.

Features

• Field configurable settings • Two balanced outputs
• Voltage or ground seeking trigger inputs • Tone or voice message library available
• Two trigger inputs per message • 2 RX Audio inputs for mixing with
• Each message configured as “one-shot” messages
or repeating continually • Message mute input
• Messages play simultaneously or
sequentially (if prioritized)
