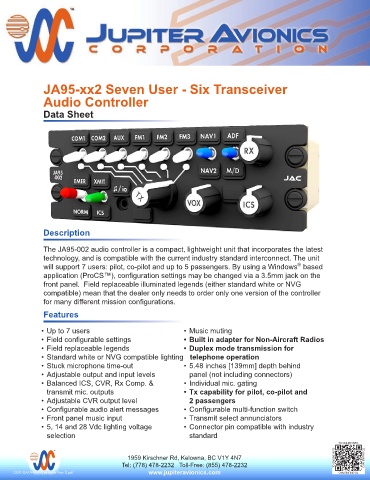

JA95-xx2 Seven User - Six Transceiver

Audio Controller

Data Sheet

Description

The JA95-002 audio controller is a compact, lightweight unit that incorporates the latest
technology, and is compatible with the current industry standard interconnect. The unit
®
will support 7 users: pilot, co-pilot and up to 5 passengers. By using a Windows based
application (ProCS™), configuration settings may be changed via a 3.5mm jack on the
front panel. Field replaceable illuminated legends (either standard white or NVG
compatible) mean that the dealer only needs to order only one version of the controller
for many different mission configurations.

Features

• Up to 7 users • Music muting
• Field configurable settings • Built in adapter for Non-Aircraft Radios
• Field replaceable legends • Duplex mode transmission for
• Standard white or NVG compatible lighting telephone operation
• Stuck microphone time-out • 5.48 inches [139mm] depth behind
• Adjustable output and input levels panel (not including connectors)
• Balanced ICS, CVR, Rx Comp. & • Individual mic. gating
trans mit mic. outputs • Tx capability for pilot, co-pilot and
• Adjustable CVR output level 2 passengers
• Configurable audio alert messages • Configurable multi-function switch
• Front panel music input • Transmit select annunciators
• 5, 14 and 28 Vdc lighting voltage • Connector pin compatible with industry
selection standard
