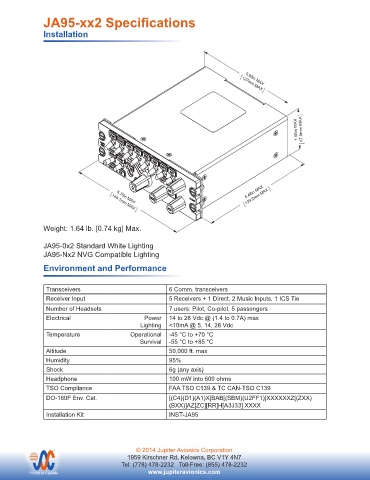

Page 25 - Jupiter Product Guide 2024 Rev M

JA95-xx2 Specifications

Installation 5.00in MAX

127mm MAX

1.88in MAX 47.8mm MAX

5.48in MAX
139.2mm MAX
5.75in MAX
146.1mm MAX

Weight: 1.64 lb. [0.74 kg] Max.

JA95-0x2 Standard White Lighting
JA95-Nx2 NVG Compatible Lighting
UNLESS OTHERWISE SPECIFIED PREPARED TAT
DIMENSIONS ARE IN INCHES
Environment and Performance JAC
ANGLES ARE IN DEGREES
TOLERANCES:
1 DEC PLACE: 0.1
2 DEC PLACE: 0.01 CHECKED 12-19-13 TITLE
3 DEC PLACE: 0.005 TAT
ANGLES: 0.5 DEG Audio Controller
Transceivers 6 Comm. transceivers
JAC
APPROVED 02-17-14 NCAGE CODE PART NO. SHEET
L00N3
JA95-002
KDV
Receiver Input 5 Receivers + 1 Direct, 2 Music Inputs, 1 ICS Tie 1/1
CONFIDENTIAL & PROPRIETARY DOC. NO.
Number of Headsets MATERIAL: N/A 7 users: Pilot, Co-pilot, 5 passengers
TO JUPITER AVIONICS CORP.
FINISH: N/A DRAWING NOT TO SCALE JA95-002 3D Model Rev A.SLDDRW
Electrical Power 14 to 28 Vdc @ (1.4 to 0.7A) max
JUPITER AVIONICS TEMPLATE SOLIDWORKS LANDSCAPE SIZEA REV B.DRWDOT
Lighting <10mA @ 5, 14, 28 Vdc
Temperature Operational -45 °C to +70 °C
Survival -55 °C to +85 °C
Altitude 50,000 ft. max
Humidity 95%
Shock 6g (any axis)
Headphone 100 mW into 600 ohms
TSO Compliance FAA TSO C139 & TC CAN-TSO C139
DO-160F Env. Cat. [(C4)(D1)(A1)X]BAB[(SBM)(U2FF1)]XXXXXXZ[(ZXX)
(BXX)]AZ[ZC][RR]H[A3J33] XXXX
Installation Kit INST-JA95
