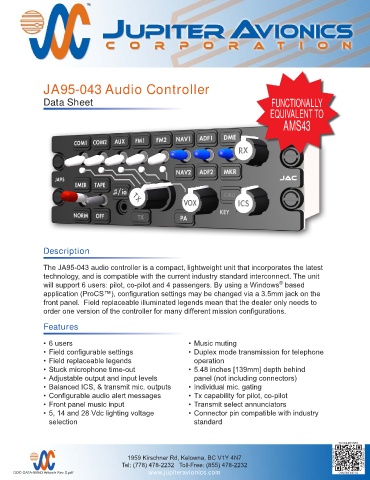

JA95-043 Audio Controller

Data Sheet FUNCTIONALLY
EQUIVALENT TO
AMS43

Description

The JA95-043 audio controller is a compact, lightweight unit that incorporates the latest
technology, and is compatible with the current industry standard interconnect. The unit
®
will support 6 users: pilot, co-pilot and 4 passengers. By using a Windows based
application (ProCS™), configuration settings may be changed via a 3.5mm jack on the
front panel. Field replaceable illuminated legends mean that the dealer only needs to
order one version of the controller for many different mission configurations.

Features

• 6 users • Music muting
• Field configurable settings • Duplex mode transmission for telephone
• Field replaceable legends operation
• Stuck microphone time-out • 5.48 inches [139mm] depth behind
• Adjustable output and input levels panel (not including connectors)
• Balanced ICS, & transmit mic. outputs • Individual mic. gating
• Configurable audio alert messages • Tx capability for pilot, co-pilot
• Front panel music input • Transmit select annunciators
• 5, 14 and 28 Vdc lighting voltage • Connector pin compatible with industry
selection standard
