Page 27 - Jupiter Product Guide 2024 Rev M

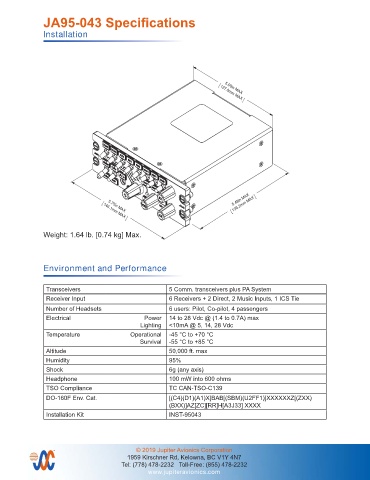

JA95-043 Specifications

Installation 127.0mm MAX

5.00in MAX

5.48in MAX
139.2mm MAX
5.75in MAX
146.1mm MAX

Weight: 1.64 lb. [0.74 kg] Max.

Environment and Performance
UNLESS OTHERWISE SPECIFIED
DIMENSIONS ARE IN INCHES PREPARED TAT
ANGLES ARE IN DEGREES
TOLERANCES: JAC
1 DEC PLACE: 0.1
2 DEC PLACE: 0.01 CHECKED 03-22-18 TITLE
TAT
Transceivers 3 DEC PLACE: 0.005 5 Comm. transceivers plus PA System Audio Controller
ANGLES:
0.5 DEG
JAC
Receiver Input 6 Receivers + 2 Direct, 2 Music Inputs, 1 ICS Tie SHEET
NCAGE CODE
PART NO.
APPROVED 03-22-18 L00N3 JA95-043 1/1
KDV
Number of Headsets 6 users: Pilot, Co-pilot, 4 passengers
MATERIAL: N/A CONFIDENTIAL & PROPRIETARY DOC. NO.
TO JUPITER AVIONICS CORP.
JA95-043 3D Model Rev B.SLDDRW
Electrical FINISH: N/A Power 14 to 28 Vdc @ (1.4 to 0.7A) max
DRAWING NOT TO SCALE
Lighting <10mA @ 5, 14, 28 Vdc
JUPITER AVIONICS TEMPLATE SOLIDWORKS LANDSCAPE SIZEA REV B.DRWDOT
Temperature Operational -45 °C to +70 °C
Survival -55 °C to +85 °C
Altitude 50,000 ft. max
Humidity 95%
Shock 6g (any axis)
Headphone 100 mW into 600 ohms
TSO Compliance TC CAN-TSO-C139
DO-160F Env. Cat. [(C4)(D1)(A1)X]BAB[(SBM)(U2FF1)]XXXXXXZ[(ZXX)
(BXX)]AZ[ZC][RR]H[A3J33] XXXX
Installation Kit INST-95043

© 2019 Jupiter Avionics Corporation
TM
1959 Kirschner Rd, Kelowna, BC V1Y 4N7
Tel: (778) 478-2232 Toll-Free: (855) 478-2232
Printed in Canada www.jupiteravionics.com
