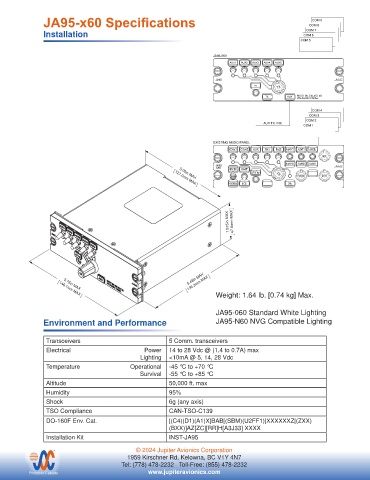

Page 31 - Jupiter Product Guide 2024 Rev M

JA95-x60 Specifications COM 8
COM 9
COM 7
Installation COM 6
COM 5

JA95-060
AUX1 AUX2 AUX3 AUX4 AUX5

io

TX AUX MUST BE SELECTED
ON AUDIO PANEL
COM 4
COM 3
COM 2
AUX TX / RX
COM 1

EXISTING AUDIO PANEL

5.00in MAX
127.0mm MAX

1.875in MAX 47.6mm MAX

5.48in MAX
139.2mm MAX
5.75in MAX
Weight: 1.64 lb. [0.74 kg] Max.
146.1mm MAX

JA95-060 Standard White Lighting
Environment and Performance JA95-N60 NVG Compatible Lighting

Transceivers 5 Comm. transceivers
UNLESS OTHERWISE SPECIFIED PREPARED TAT
DIMENSIONS ARE IN INCHES
Electrical Power 14 to 28 Vdc @ (1.4 to 0.7A) max
ANGLES ARE IN DEGREES
TOLERANCES: JAC
11-27-18 <10mA @ 5, 14, 28 Vdc

1 DEC PLACE: 0.1 CHECKED Lighting
2 DEC PLACE: 0.01 TITLE
3 DEC PLACE: 0.005 TAT Audio Controller - Five Transceiver - Expander
Temperature 0.5 DEG Operational -45 °C to +70 °C
ANGLES:
JAC
11-29-18 -55 °C to +85 °C
APPROVED Survival NCAGE CODE PART NO. SHEET
KDV L00N3 JA95-060 1/1
Altitude 50,000 ft. max
MATERIAL: N/A CONFIDENTIAL & PROPRIETARY DOC. NO.
TO JUPITER AVIONICS CORP.
Humidity FINISH: N/A DRAWING NOT TO SCALE JA95-060 3D Model Rev A.SLDDRW
95%
JUPITER AVIONICS TEMPLATE SOLIDWORKS LANDSCAPE SIZEA REV B.DRWDOT
Shock 6g (any axis)
TSO Compliance CAN-TSO-C139
DO-160F Env. Cat. [(C4)(D1)(A1)X]BAB[(SBM)(U2FF1)]XXXXXXZ[(ZXX)
(BXX)]AZ[ZC][RR]H[A3J33] XXXX
Installation Kit INST-JA95
© 2024 Jupiter Avionics Corporation
TM
1959 Kirschner Rd, Kelowna, BC V1Y 4N7
Tel: (778) 478-2232 Toll-Free: (855) 478-2232
Printed in Canada www.jupiteravionics.com
