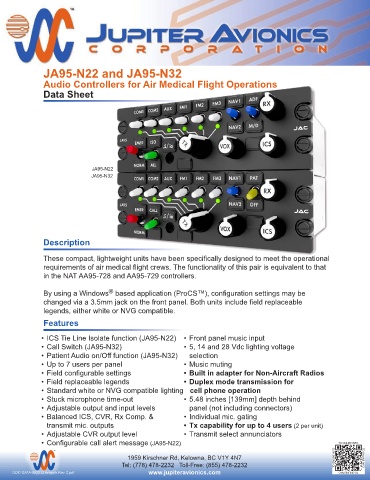

Page 28 - Jupiter Product Guide 2025 Rev N

JA95-N22 and JA95-N32

Audio Controllers for Air Medical Flight Operations
Data Sheet

JA95-N22
JA95-N32

Description

These compact, lightweight units have been specifically designed to meet the operational
requirements of air medical flight crews. The functionality of this pair is equivalent to that
in the NAT AA95-728 and AA95-729 controllers.

®
By using a Windows based application (ProCS™), configuration settings may be
changed via a 3.5mm jack on the front panel. Both units include field replaceable
legends, either white or NVG compatible.
Features

• ICS Tie Line Isolate function (JA95-N22) • Front panel music input
• Call Switch (JA95-N32) • 5, 14 and 28 Vdc lighting voltage
• Patient Audio on/Off function (JA95-N32) selection
• Up to 7 users per panel • Music muting
• Field configurable settings • Built in adapter for Non-Aircraft Radios
• Field replaceable legends • Duplex mode transmission for
• Standard white or NVG compatible lighting cell phone operation
• Stuck microphone time-out • 5.48 inches [139mm] depth behind
• Adjustable output and input levels panel (not including connectors)
• Balanced ICS, CVR, Rx Comp. & • Individual mic. gating
trans mit mic. outputs • Tx capability for up to 4 users (2 per unit)
• Adjustable CVR output level • Transmit select annunciators
• Configurable call alert message (JA95-N22) TO ONLINE INFO
