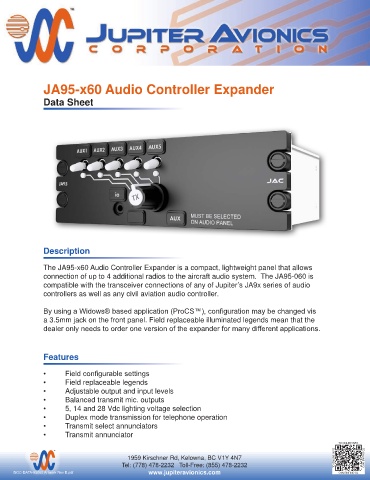

JA95-x60 Audio Controller Expander

Data Sheet

Description

The JA95-x60 Audio Controller Expander is a compact, lightweight panel that allows
connection of up to 4 additional radios to the aircraft audio system. The JA95-060 is
compatible with the transceiver connections of any of Jupiter’s JA9x series of audio
controllers as well as any civil aviation audio controller.

By using a Widows® based application (ProCS™), configuration may be changed vis
a 3.5mm jack on the front panel. Field replaceable illuminated legends mean that the
dealer only needs to order one version of the expander for many different applications.

Features

• Field configurable settings
• Field replaceable legends
• Adjustable output and input levels
• Balanced transmit mic. outputs
• 5, 14 and 28 Vdc lighting voltage selection
• Duplex mode transmission for telephone operation
• Transmit select annunciators
• Transmit annunciator
