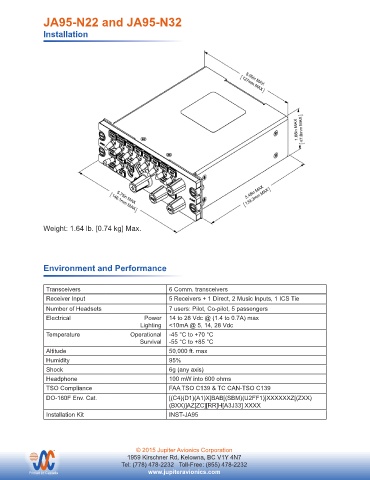

JA95-N22 and JA95-N32

Installation

Weight: 1.64 lb. [0.74 kg] Max.

Environment and Performance

Transceivers 6 Comm. transceivers
Receiver Input 5 Receivers + 1 Direct, 2 Music Inputs, 1 ICS Tie
Number of Headsets 7 users: Pilot, Co-pilot, 5 passengers
Electrical Power 14 to 28 Vdc @ (1.4 to 0.7A) max
Lighting <10mA @ 5, 14, 28 Vdc
Temperature Operational -45 °C to +70 °C
Survival -55 °C to +85 °C
Altitude 50,000 ft. max
Humidity 95%
Shock 6g (any axis)
Headphone 100 mW into 600 ohms
TSO Compliance FAA TSO C139 & TC CAN-TSO C139
DO-160F Env. Cat. [(C4)(D1)(A1)X]BAB[(SBM)(U2FF1)]XXXXXXZ[(ZXX)
(BXX)]AZ[ZC][RR]H[A3J33] XXXX
Installation Kit INST-JA95
