Test Equipment and Cables

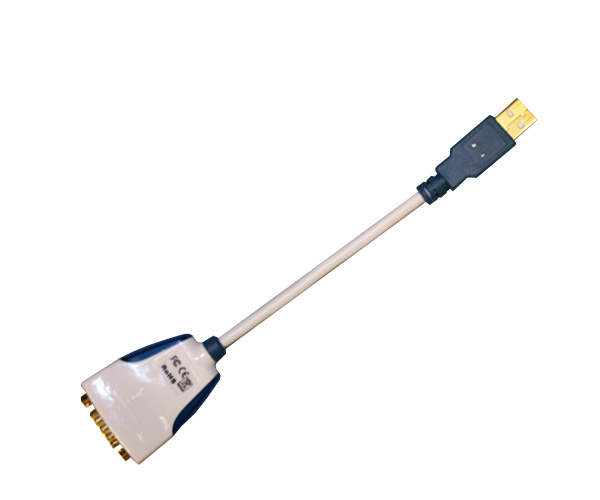

CAB-USB-0002
USB A to RS232 9 Pin Cable
One cable will be provided at no charge upon Dealer
Registration Approval
Drivers:
Download Driver for Windows 10 and 11 (exe)
Download Driver for Windows 10 and 11 (ex_)
Installation Guide for Windows 10 and 11

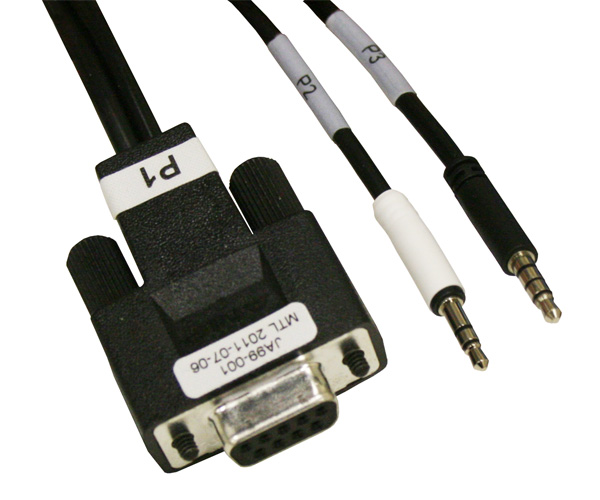

JA99-001
Configuration Cable
The JA99-001 Configuration Cable allows downloading
of configuration settings to a Jupiter Avionics Corporation
audio product with a Personal Computer (PC) RS232 or
USB connector. The JA99-001 is a cable with three
connectors.
One cable will be provided at no charge upon Dealer
Registration Approval.

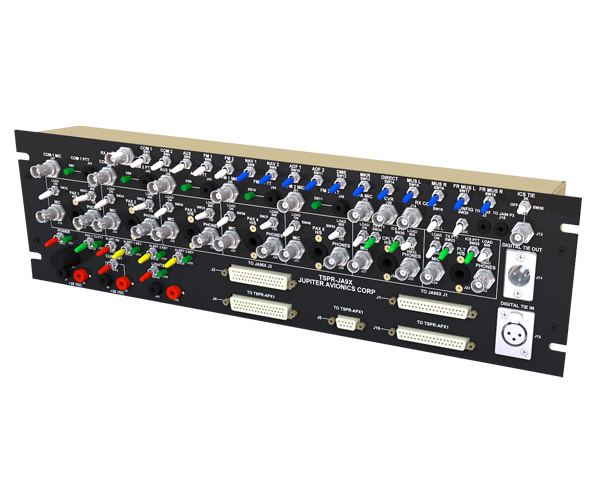

TSPR-JA9X
JA95 Test Set
The TSPR-JA9X Production Test Set connects the JA9X
audio controllers to the various test loads and test
equipment needed to perform the production acceptance
test procedure. The test set is a 19 inch rack mount test
panel that connects the JA9X series audio controller to
test equipment via the CAB-TSPR-0004, 37 Pin D-sub
and the CAB-TSPR-0005.
Available to Authorised JAC dealers.

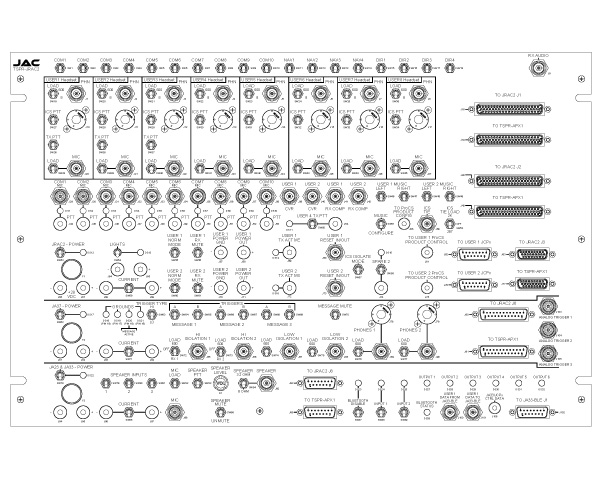

TSPR-JRAC2
JRAC2 Test Set
The TSPR-JRAC2 Production Test Set connects the JRAC2 and JA10 audio controllers, JA37-xxx Aural Message Generator and JA23-xxx Speaker Amplifier to the various test loads and test equipment needed to perform acceptance test procedures. The test set is a 19 inch rack mount test panel that connects to the test equipment via the CAB-TSPR-0028, CAB-TSPR-0029, CAB-TSPR-0030, CAB-TSPR-0037 and CAB-TSPR-0038. Available to Authorised JAC dealers.
