USB Chargers and Glove Boxes

Standard Glove Boxes Reference Chart

Glove Box Reference Chart

Part Number Mounting Type Other
JA70-005 5 Dzus
JA70-007 7 Dzus
JA70-007C 7 Dzus With Cover
JA70-009 9 Dzus
JA70-009C 9 Dzus With Cover
JA70-012 12 Dzus
JA70-012C 12 Dzus With Cover
JA70-013 13 Dzus
JA70-015 15 Dzus
JA70-017 17 Dzus
JA70-026 26 Dzus
USB Glove Boxes and Chargers Reference Chart

USB Reference Chart

Part Number Product Type Mounting Type USB Type Other
UJAC-001 Charger Circular A
UJAC-002 Charger Circular C
JA72-006 Glove Box 6 Dzus A
JA72-210 Glove Box 10 Dzus A x 2
JA72-310 Glove Box 10 Dzus A x 2 Plus music jack
JA72-406 Glove Box 6 Dzus C
JA72-408 Glove Box 8 Dzus A + C
JA72-410 Glove Box 10 Dzus A + C
JA72-410C Glove Box 10 Dzus A + C With Cover
JA72-510 Glove Box 10 Dzus C x 2
JA74-001 Charger 3 Dzus A x 2
JA74-410 Charger 3 Dzus A + C
JA74-510 Charger 3 Dzus C x 2

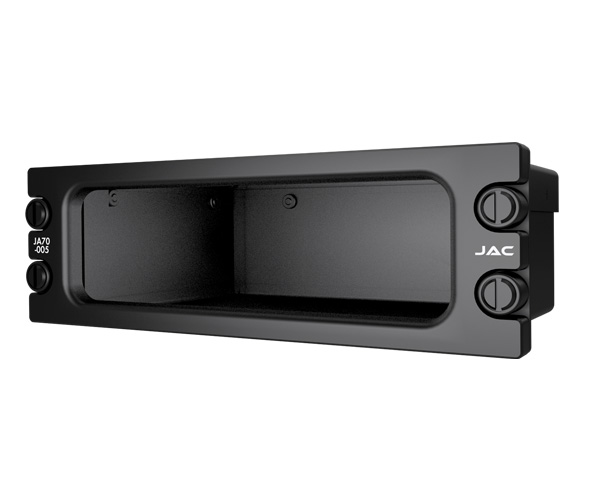

JA70-005

5 Dzus Glove Box

5 Dzus Hole High Glove Box


Dimensions: 5.75 x 1.87 x 3.4 in (14.60 x 4.75 x 8.64 cm)


Opening: 4.46 x 1.30 in (11.33 x 3.30 cm)


Convenient Map Case





Data Sheet
Install Manual

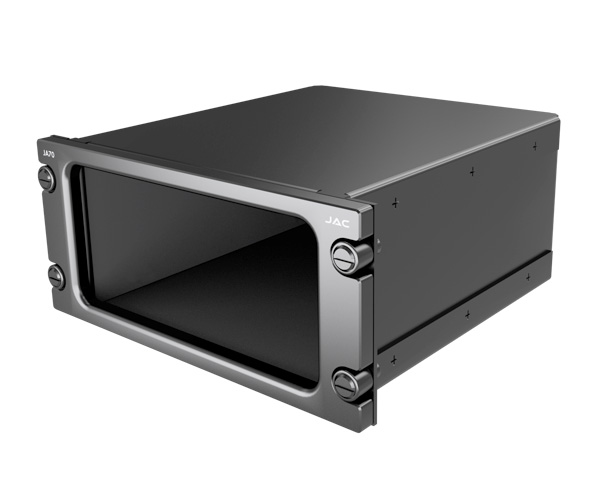

JA70-007

7 Dzus Glove Box

7 Dzus Hole High Glove Box


Dimensions: 5.75 x 2.62 x 5.51 in (14.60 x 6.7 x 14.0 cm)


Opening: 4.46 x 2.05 in (11.33 x 5.2 cm)






Data Sheet

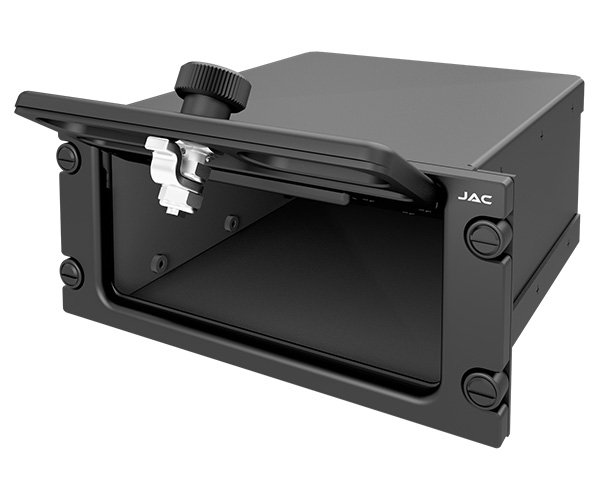

JA70-007C

7 Dzus Glove Box with Cover

7 Dzus Hole High Glove Box


Hinged cover helps to keep small items secure


Dimensions: 5.75 x 2.62 x 5.51 in (14.60 x 6.6 x 14.0 cm)


Opening: 4.46 x 1.80 in (11.33 x 4.6 cm)





Data Sheet

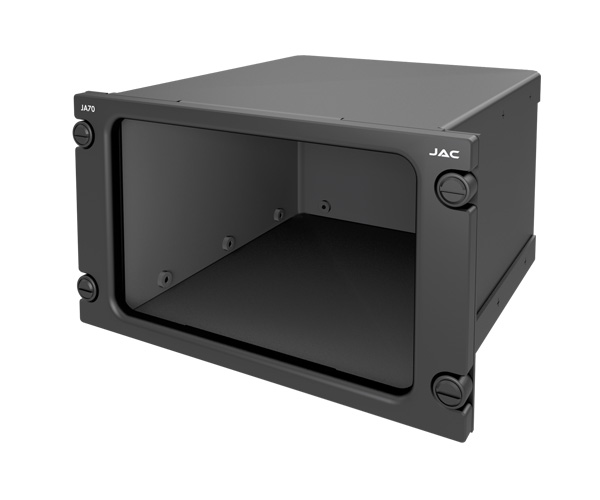

JA70-009

9 Dzus Glove Box

9 Dzus Hole High Glove Box


Dimensions: 5.75 x 3.375 x 5.51 in (14.60 x 8.6 x 14.0 cm)


Opening: 4.46 x 2.8 in (11.33 x 7.1 cm)






Data Sheet

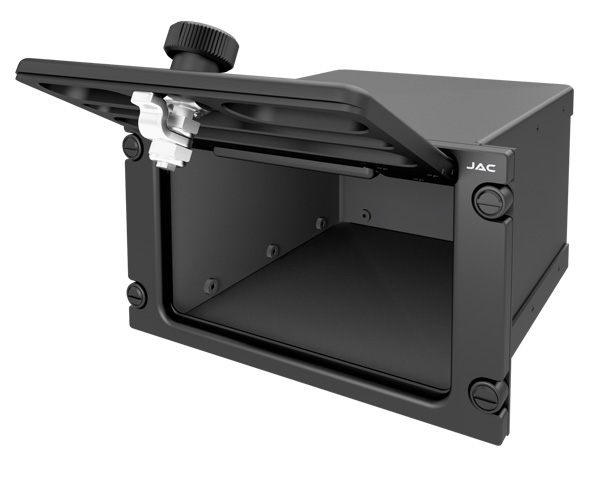

JA70-009C

9 Dzus Glove Box with Cover

9 Dzus Hole High Glove Box


Hinged cover helps to keep small items secure


Dimensions: 5.75 x 3.375 x 5.51 in (14.60 x 8.6 x 14.0 cm)


Opening: 4.46 x 2.55 in (11.33 x 6.5 cm)





Data Sheet

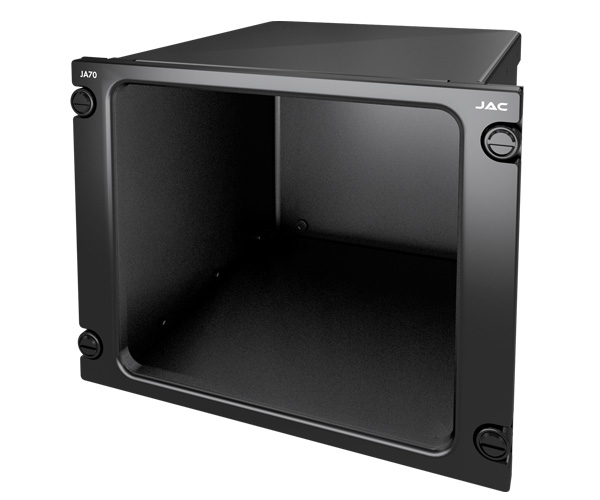

JA70-012

12 Dzus Glove Box

12 Dzus Hole High Glove Box


Dimensions: 5.75 x 4.50 x 5.51 in (14.60 x 114.3 x 14.0 cm)


Opening: 4.46 x 3.93 in (11.33 x 9.9 cm)






Data Sheet

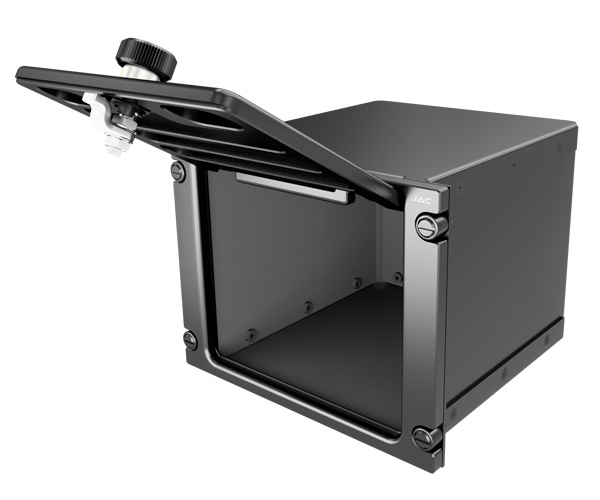

JA70-012C

12 Dzus Glove Box with Cover

12 Dzus Hole High Glove Box with Cover


Hinged cover helps to keep small items secure


Dimensions: 5.75 x 4.50 x 5.51 in (14.60 x 114.3 x 14.0 cm)


Opening: 4.46 x 3.67 in (11.33 x 9.3 cm)





Data Sheet

JA70-013

13 Dzus Glove Box

13 Dzus Hole High Glove Box


Dimensions: 5.75 x 4.50 x 5.51 in (14.60 x 114.3 x 14.0 cm)


Opening: 4.46 x 4.30 in (11.33 x 10.92 cm)






Data Sheet

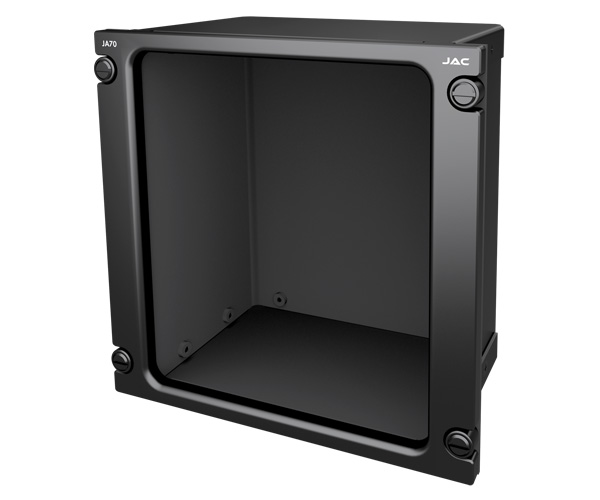

JA70-015

15 Dzus Glove Box

15 Dzus Hole High Glove Box


Dimensions: 5.75 x 5.625 x 3.02 in (146.1 x 142.9 x 76.7 mm)


Opening: 4.46 x 5.05 in (113.3 x 128.3 mm)






Data Sheet

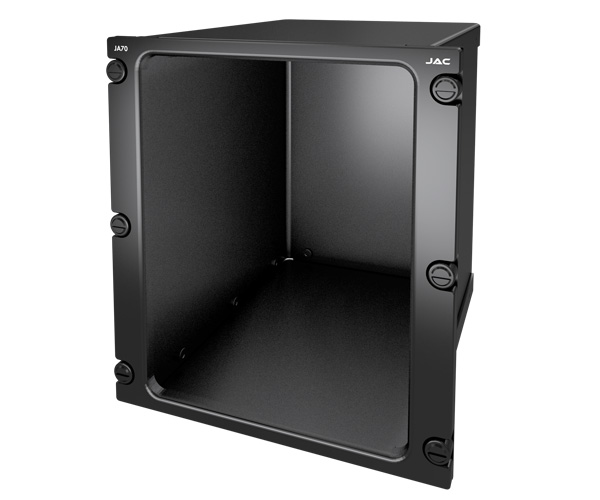

JA70-017

17 Dzus Glove Box

17 Dzus Hole High Glove Box


Dimensions: 5.75 x 6.51 x 6.4 in (14.60 x 6.5 x 6.4 cm)


Opening: 4.46 x 5.80 in (11.33 x 14.7 cm)


Enough room to fit an iPAD Air 2





Data Sheet

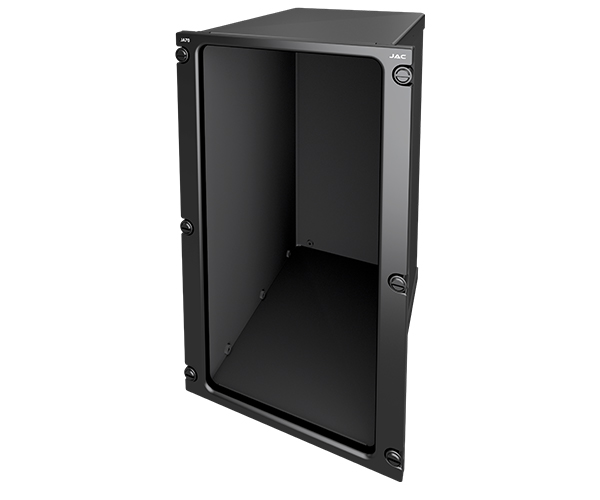

JA70-026

26 Dzus Glove Box

26 Dzus Hole High Glove Box


Dimensions: 5.75 x 9.75 x 6.51 in (146.1 x 247.7 x 165.4 mm)


Opening: 4.46 x 9.18 in (113.3 x 233.2 mm)






Data Sheet

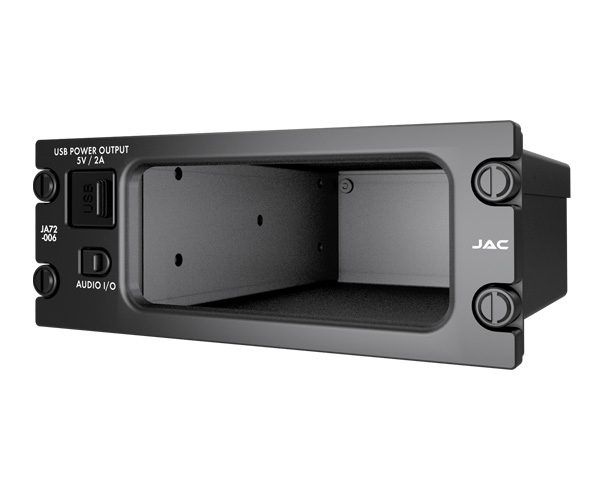

JA72-006

6 Dzus Glove Box with USB-A Charger

6 Dzus Hole High Glove Box with USB-A Charger


Dimensions: 5.75 x 2.25 x 5.50 in (14.60 x 5.72 x 13.97 cm)


Opening: 3.73 x 1.56 in (9.47 x 3.93 cm)


USB Charger Port 5V at 2A


3.5mm Music Jack


Convenient Map Case



Data Sheet
Install and Operating Manual

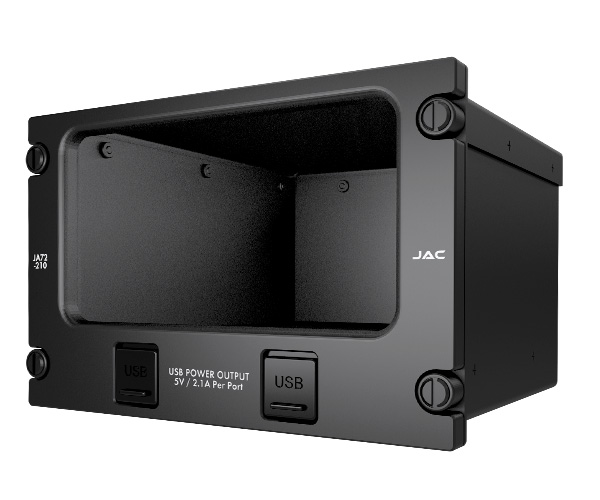

JA72-210

10 Dzus High Glove Box with Dual USB-A Charger

10 Dzus Hole High Glove Box with Dual USB-A Charger


Dimensions: 5.75 x 3.75 x 5.50 in (14.60 x 14.0 x 13.97 cm)


Opening: 4.46 x 2.35 in (11.3 x 60.0 cm)


USB Charger Port 5V at 2.1A per port


Convenient Map Case




Data Sheet
Install and Operating Manual

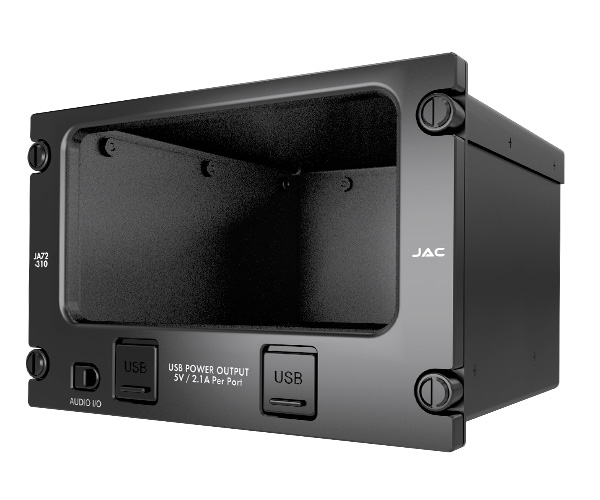

JA72-310

10 Dzus High Glove Box with Dual USB-A Charger

and Audio Jack

10 Dzus Hole High Glove Box with Dual USB-A Charger


Dimensions: 5.75 x 3.75 x 5.50 in (14.60 x 14.0 x 13.97 cm)


Opening: 4.46 x 2.35 in (11.3 x 60.0 cm)


USB Charger Port 5V at 2.1A per port


3.5mm Music Jack




Data Sheet
Install and Operating Manual

JA72-406

Glove Box with USB-C Charger - 6 Dzus

6 Dzus Hole High Glove Box with USB-C Charger


Dimensions: 5.75 x 2.25 x 5.50 in (14.60 x 5.72 x 13.97 cm)


Opening: 3.73 x 1.56 in (9.47 x 3.93 cm)


5/9/12/15 Volts DC at up to 3.0 Amps



Convenient Map Case



Data Sheet
Install and Operating Manual

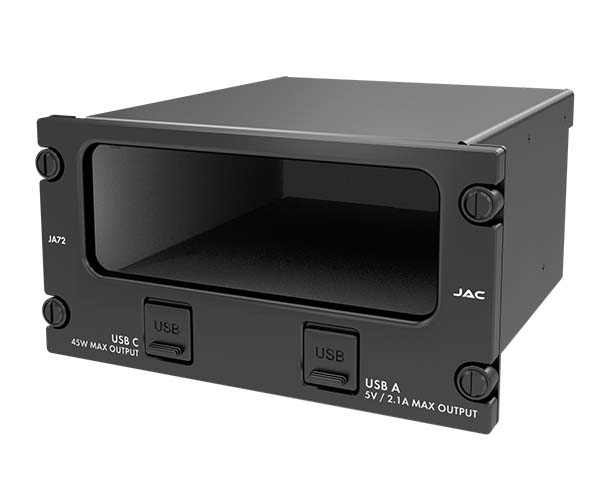

JA72-408

8 Dzus High Glove Box with USB-A and USB-C Charger

10 Dzus Hole High Glove Box with USB-A and USB-C Charger


Dimensions: 5.75 x 3.75 x 5.71 in (14.60 x 14.0 x 14.5 cm)


Opening: 4.46 x 1.58 in (11.3 x 4.0 cm)


USB A - 5V at 2.1A


USB C - 5/9/12/15 VDC @ 3.0 Amps & 20 VDC @ 2.25 Amps


Convenient Map Case



Data Sheet
Install and Operating Manual

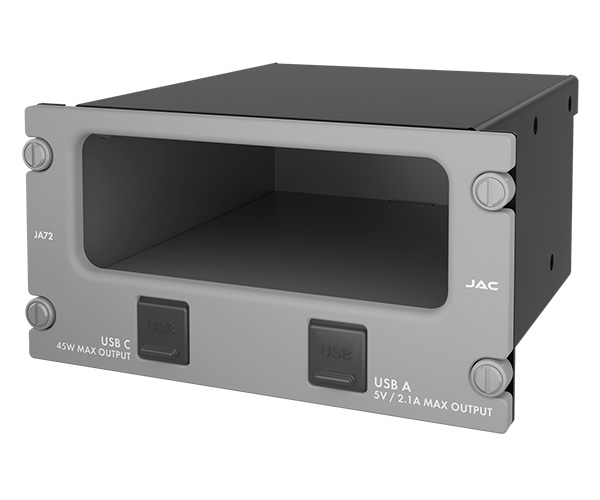

JA72-408G

8 Dzus High Glove Box with USB-A and USB-C Charger

- Grey

10 Dzus Hole High Glove Box with USB-A and USB-C Charger


Dimensions: 5.75 x 3.75 x 5.71 in (14.60 x 14.0 x 14.5 cm)


Opening: 4.46 x 1.58 in (11.3 x 4.0 cm)


USB A - 5V at 2.1A


USB C - 5/9/12/15 VDC @ 3.0 Amps & 20 VDC @ 2.25 Amps


Convenient Map Case


Grey


JA72-410

10 Dzus High Glove Box with USB-A and USB-C Charger

10 Dzus Hole High Glove Box with USB-A and USB-C Charger


Dimensions: 5.75 x 3.75 x 5.50 in (14.60 x 14.0 x 13.97 cm)


Opening: 4.46 x 2.35 in (11.3 x 6.0 cm)


USB A - 5V at 2.1A


USB C - 5/9/12/15 VDC @ 3.0 Amps & 20 VDC @ 2.25 Amps


Convenient Map Case



Data Sheet
Install and Operating Manual

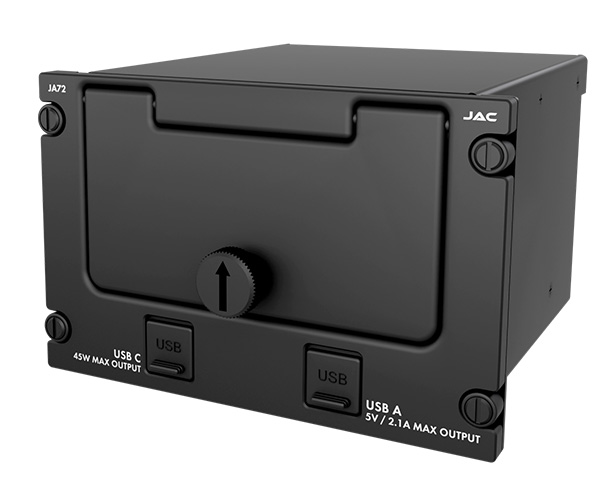

JA72-410C

10 Dzus Hole High Glove Box

with Cover and USB-A and USB-C Chargers

10 Dzus Hole High Glove Box


with Cover and USB-A and USB-C Chargers


Dimensions: 5.75 x 3.75 x 5.50 in (14.60 x 14.0 x 13.97 cm)


Opening: 4.46 x 2.09 in (11.3 x 53.2 cm)


USB A - 5V at 2.1A


USB C - 5/9/12/15 VDC @ 3.0 Amps & 20 VDC @ 2.25 Amps


Hinged cover helps to keep your items secure


Data Sheet
Install and Operating Manual

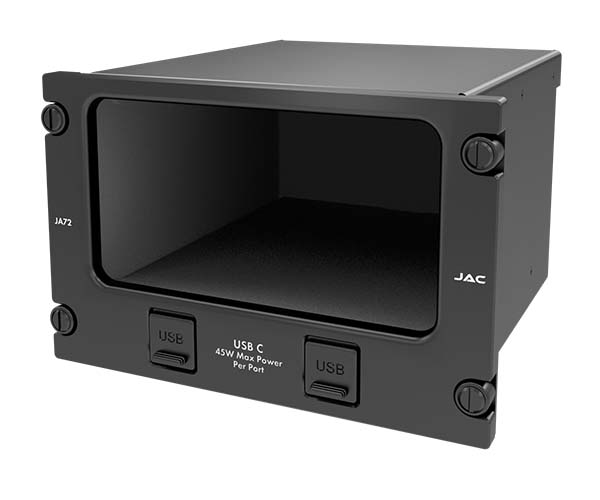

JA72-510

Glove Box with Dual USB-C Charger - 10 Dzus

10 Dzus Hole High Glove Box with Dual USB-C Charger


Dimensions: 5.75 x 3.75 x 5.50 in (14.60 x 14.0 x 13.97 cm)


Opening: 4.46 x 2.35 in (11.3 x 60.0 cm)


USB-C 5/9/12/15 VDC @ 3A & 20VDC @2.25A per port



Convenient Map Case



Data Sheet
Install and Operating Manual

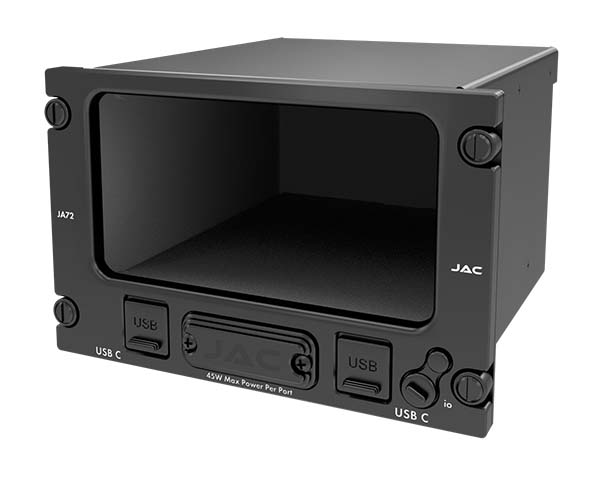

JA72-610

Glove Box with Dual USB-C Charger and Bluetooth -

10 Dzus

Glove Box with Dual USB-C Charger and Bluetooth


Dimensions: 5.75 x 3.75 x 5.50 in (14.60 x 14.0 x 13.97 cm)


Opening: 4.46 x 2.35 in (11.3 x 60.0 cm)


USB-C 5/9/12/15 VDC @ 3A & 20VDC @2.25A per port


Bluetooth Profiles: A2DP and HFP


Convenient Map Case



Data Sheet

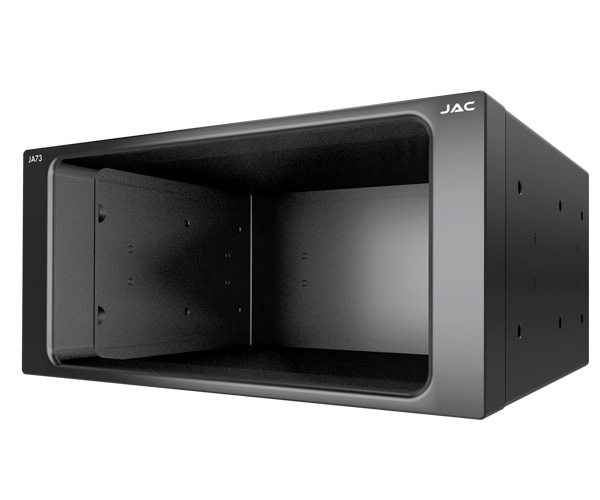

JA73-001

Tray Mount Glove Box - 3 Inches High

3 Inches High - Tray Mount Glove Box


Dimensions: 6.25 x 3.00 x 5.27 in (158.8 x 76.2 x 134 mm)


Opening: 5.10 x 2.60 in (129.5 x 66 mm)


Convenient storage location for your phone, keys, etc





Data Sheet
Install Manual

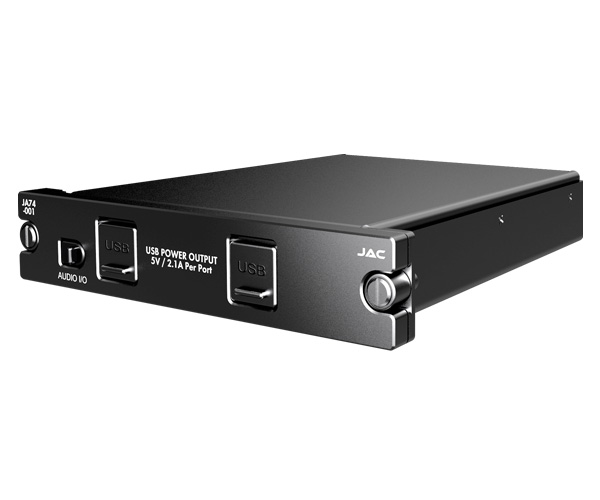

JA74-001

Dual USB-A Charging Ports

USB-A Charger Ports, 5V at 2.1A per port








Data Sheet
Install and Operating Manual

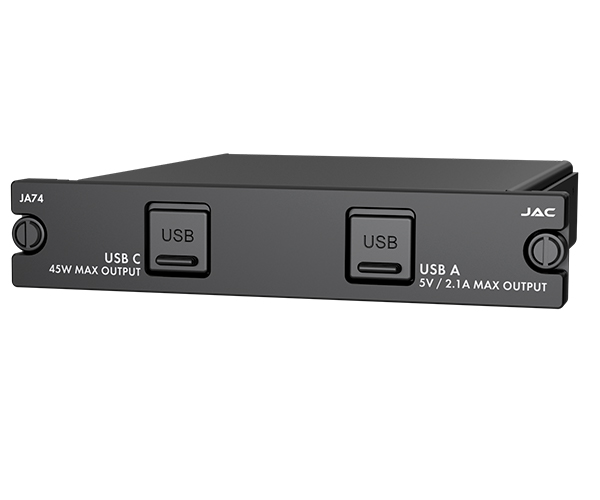

JA74-410

USB-A and USB-C Charger

USB A - 5V at 2.1A


USB C - 5/9/12/15 VDC @ 3.0 Amps & 20 VDC @ 2.25 Amps







Data Sheet
Install and Operating Manual

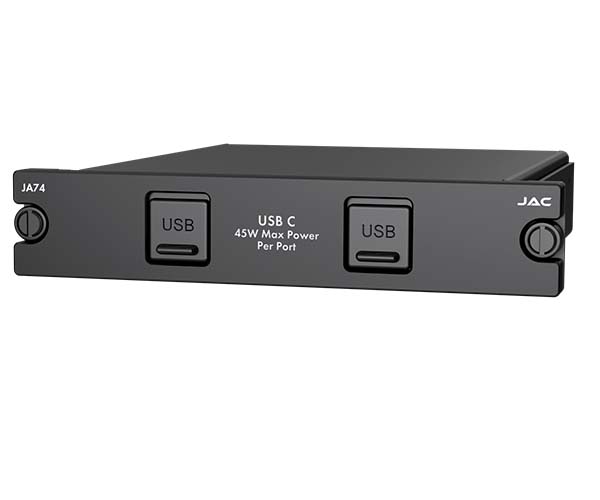

JA74-510

Dual USB-C Charger

USB-C 5/9/12/15 VDC @ 3A & 20VDC @2.25A per port








Data Sheet
Install and Operating Manual

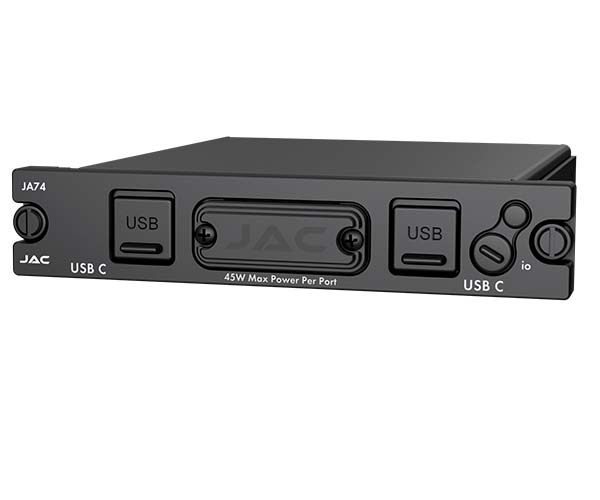

JA74-610

Dual USB-C Charger and Bluetooth

USB-C 5/9/12/15 VDC @ 3A & 20VDC @ 2.25A per port


Mic Input: 250 mVrms, Music Input 400 mVrms


Bluetooth Profiles: A2DP and HFP






Data Sheet

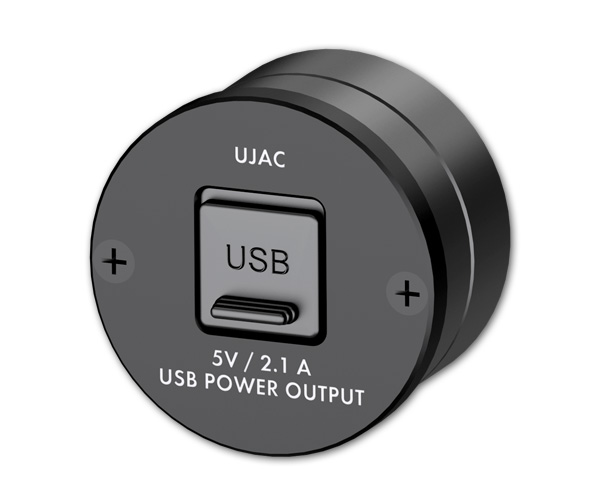

UJAC-001

Panel Mount USB Charger - USB A

Simple, Round-Hole Panel Mounting


Dust cover


Compact





Check out our 5 Dzus Mounting Plates


Check out our 2.25" Clock Mounting Plates

Data Sheet
Install and Operating Manual

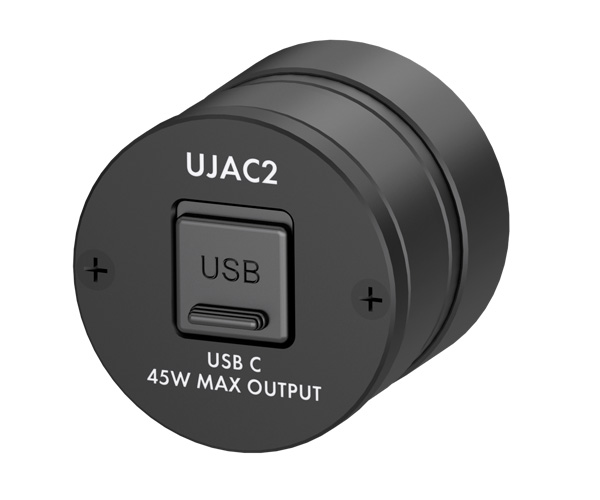

UJAC2-001

Panel Mount USB Charger - USB C

Simple, Round-Hole Panel Mounting


Dust cover


Compact





Check out our 5 Dzus Mounting Plates


Check out our 2.25" Clock Mounting Plates

Data Sheet
Install and Operating Manual
