Remote Audio Controllers
Applications
The Jupiter remote audio controllers are designed for operation with either a Jupiter control panel, a multi-function display (such as an EFIS) or wirelessly from a Bluetooth-enabled smart device.
JRAC-001
Remote Audio Controller
Headsets: 7
Output 100mW into 600 ohm phones
Transceivers: up to 6
Receivers: up to 5
Individual volume controls for transceivers
Power : 14 to 28Vdc
Approvals: TC CAN-TSO-C139

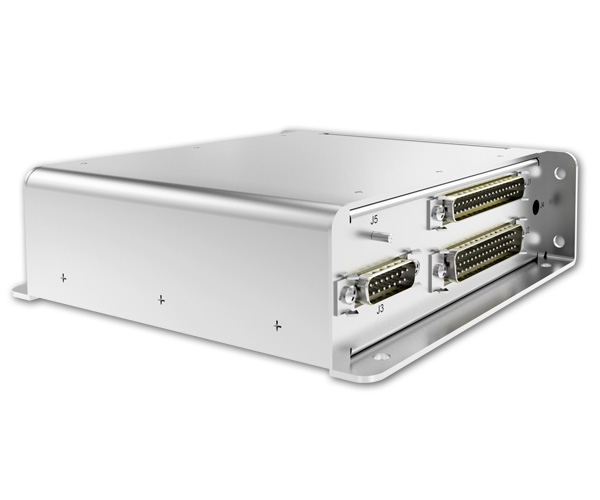

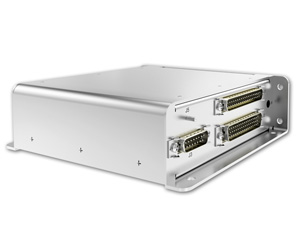

JRAC-002
Remote Audio Controller
- Discrete COM Select & TX PTT
Headsets: 7
Output 100mW into 600 ohm phones
Transceivers: up to 6
Receivers: up to 5
Individual volume controls for transceivers
Power : 14 to 28Vdc
Discrete COM1 & COM2 Select & TX PTT Keylines for Crew
Contact JAC for TSO status

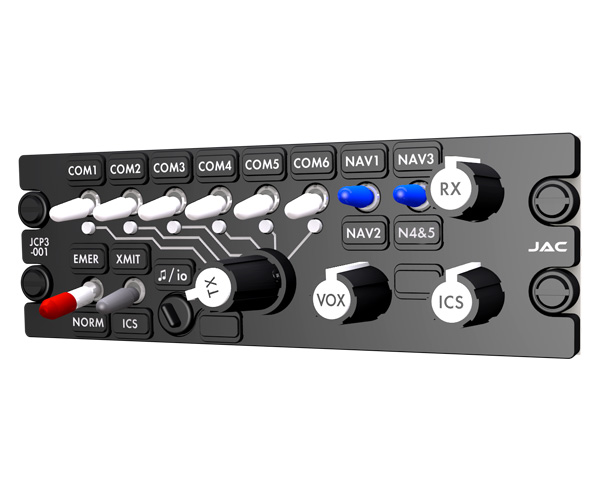

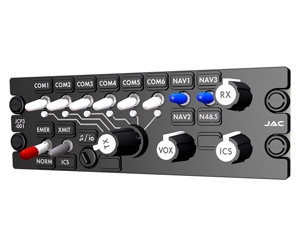

JCP3-001
Reduced Depth Control Panel
Transceivers: up to 6
Receivers: up to 5
Reduced depth behind the panel
Legends removable
Approvals: TC CAN-TSO-C139

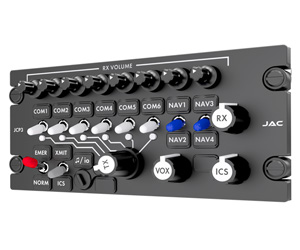

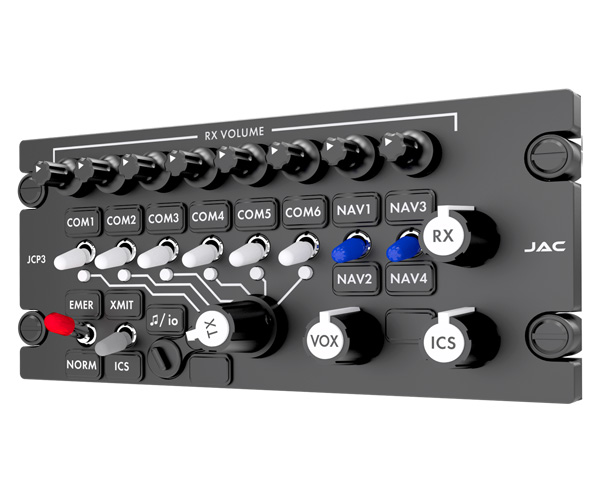

JCP3-070
Control Panel with RX Volume Controls
Individual receive volume controls
Transceivers: up to 6
Receivers: up to 5
Reduced depth behind the panel
Legends removable
NVG compatible option
Contact JAC for TSO status

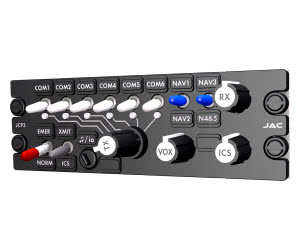

JCP3-N01
Reduced Depth Control Panel
Transceivers: up to 6
Receivers: up to 5
Reduced depth behind the panel
Legends removable
NVG compatible removable legends and annunciators
Approvals: TC CAN-TSO-C139
