Dual Remote Audio Controllers
Applications
The Jupiter dual remote audio controllers are designed for operation with two controllers, a Jupiter control panel, a multi-function display (such as an EFIS) or wirelessly from a Bluetooth-enabled smart device.
JRAC2-001
Dual Remote Audio Controller
Speaker Amp - Message Generator
Headsets: 8
Output 250mW into 600 or 8 ohm phones
Transceivers: up to 10
Receivers: up to 4 + 4 direct audio
Individual volume controls for transceivers
Integrated speaker amplifier
Stored Messages: Three 6 second messages
Contact JAC for TSO status

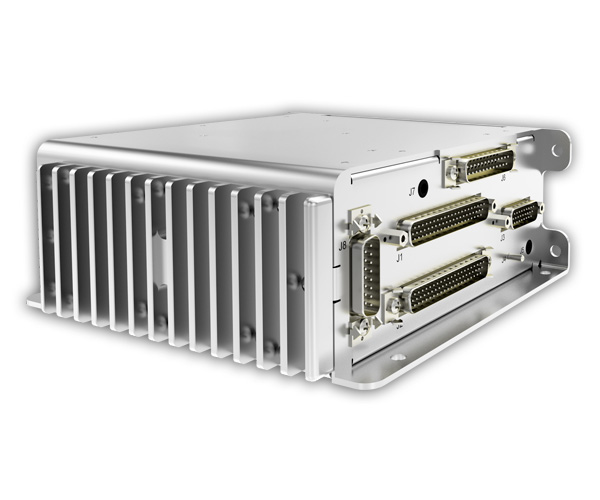

JRAC2-002
Dual Remote Audio Controller - Speaker Amp
Headsets: 8
Output 250mW into 600 or 8 ohm phones
Transceivers: up to 10
Receivers: up to 4 + 4 direct audio
Individual volume controls for transceivers
Power : 28Vdc
Intergrated speaker amplifier
Contact JAC for TSO status
JRAC2-003
Dual Remote Audio Controller - Message Generator
Headsets: 8
Output 250mW into 600 or 8 ohm phones
Transceivers: up to 10
Receivers: up to 4 + 4 direct audio
Individual volume controls for transceivers
Power : 28Vdc
Stored Messages: Three 6 second messages
Contact JAC for TSO status
JRAC2-004
Dual Remote Audio Controller
Headsets: 8
Output 250mW into 600 or 8 ohm phones
Transceivers: up to 10
Receivers: up to 4 + 4 direct audio
Individual volume controls for transceivers
Power : 28Vdc
Contact JAC for TSO status
JCP2-x10
Reduced Depth Control Panel
Operates with JRAC2 Remote audio panel OR
as an Additional Controller with the JA10 Panel Mount Controller
Transceivers: Up to 10
Receivers: Up to 4
NVG option
Legends: Removable
Contact JAC for TSO status
JCP3-001
Reduced Depth Control Panel
Transceivers: up to 6
Receivers: up to 5
Reduced depth behind the panel
Legends removable
NVG compatible option
Approvals: TC CAN-TSO-C139
JCP3-070
Control Panel with RX Volume Controls
Individual receive volume controls
Transceivers: up to 6
Receivers: up to 5
Reduced depth behind the panel
Legends removable
NVG compatible option
Contact JAC for TSO status
