Amplifiers & Audio Accessories

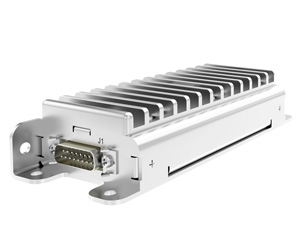

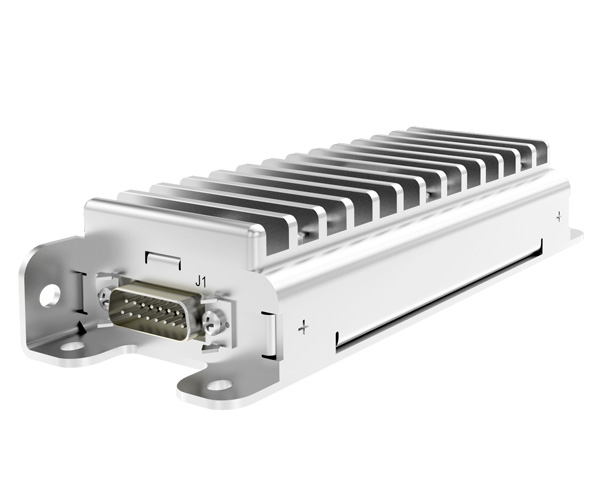

JA23-001
Speaker Amplifier
Inputs: 3 Differential and 1 Microphone
Output: Up to 10 Watts into a 3.2 Ohm speaker
Keylines: Push-to-Talk and Mute
Weight: 0.68lbs [0.31kg] MAX
Power: 28Vdc
Controls: External Volume
Approvals: Contact JAC for TSO Status

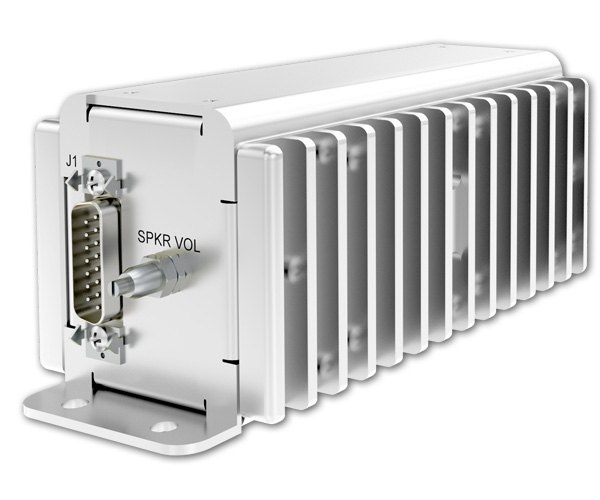

JA23-030
Speaker Amplifier - 30 Watt
Inputs: 3 Differential and 1 Microphone
Output: 30 Watts
Keylines: Push-to-Talk and Mute
Weight: 1.12 lbs [0.51 kg] MAX.
Power: 28Vdc
Controls: External Volume
Approvals: Contact JAC for TSO Status

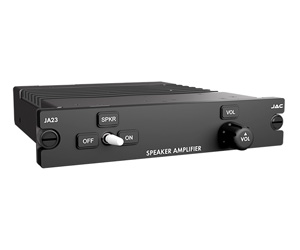

JA23-130
Speaker Amplifier - 30 Watt - Panel Mount
Inputs: 3 Differential and 1 Microphone
Output: 30 Watts
Approvals: Contact JAC for TSO Status

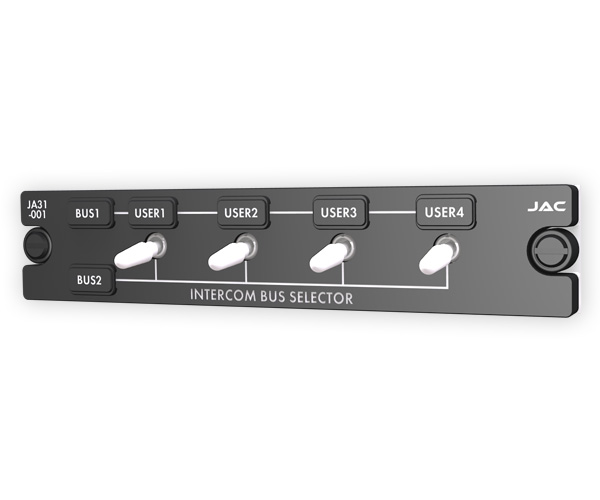

JA31-001
Intercom Bus Selector
Three Dzus hole high mounting
Two intercom buses
Up to four audio controllers
Power : NO aircraft power required
JA31-N01
Intercom Bus Selector
NVG
Contains all the features of the JA31-001
including the following:
NVIS compatible removable legends
Fully pin and functionally compatible with the JA31-001

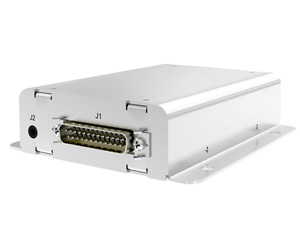

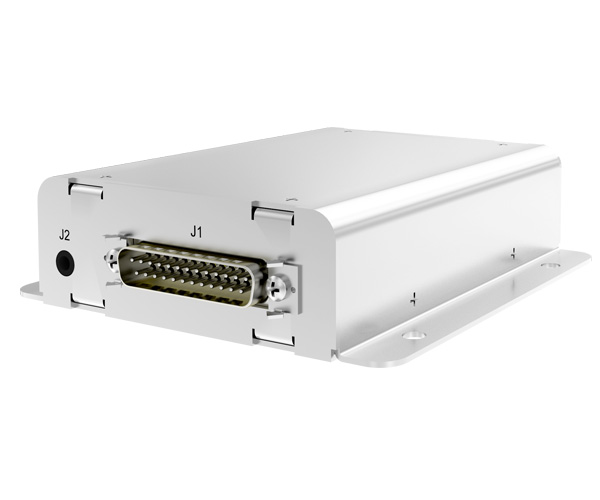

JA35-100
Audio Summing Amplifier
Remote Mount
6 Prioritized inputs
Normal and Emergency operation modes
Field configurable settings
Different composite output combinations
Weight: 0.55 lbs [0.25 kg] MAX.
Power: 28Vdc
JA80-020
Panel Mount Intercom - 4 Place
VOX and Transmit Annunciators
Individual Mic. Gating
User 1 has Transmit Priority
11 – 30 Vdc Input range
Music Input on Front Panel
Compact Design
Up to 400 mW Audio Power per Headset
User 1 directly connected to Radio when Intercom is powered off

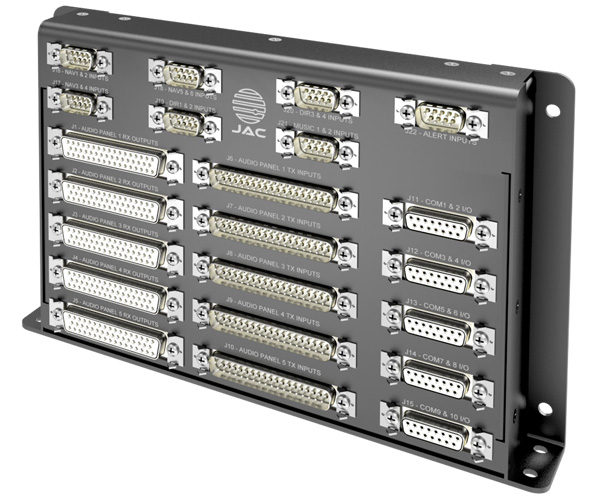

JA84-001
Audio Junction Panel
Supports up to:
Five audio Control Panels
Ten Transceivers
Six Receivers
Four ICS Tie Lines

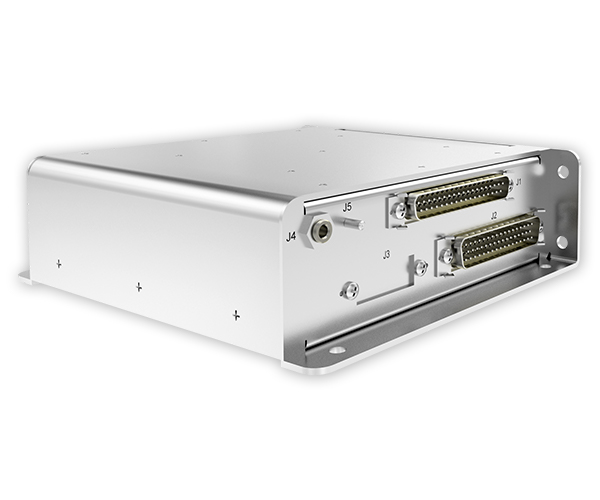

JA94-R62A
Dual Six Channel Mixing Amplifier
Field configurable settings
Two Mixers, each with up to six inputs
One Mixer with two inputs and two outputs
Passive Emergency mode operation
Weight: 1.90 lbs [0.86 kg] Max.
Power: 22 to 32.2 Vdc
Approvals: TC CAN-TSO C139

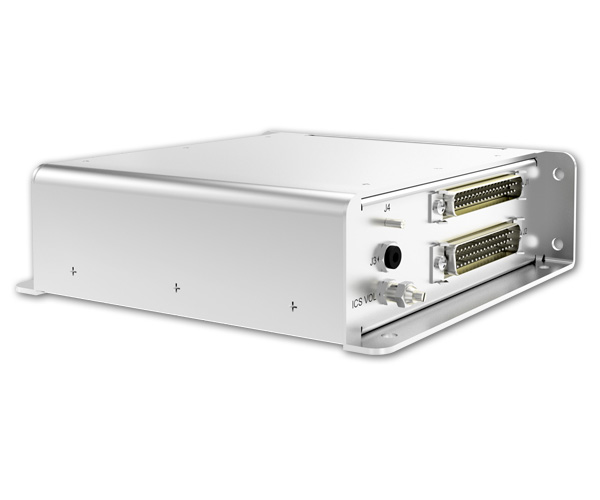

JA95-R04
ICS / Headset Expander
Contains all the features of the JA95-R03
including the following:
External VOX Control
ICS TIE Mute
ICS Volume Control Adjustable
Approvals: TC CAN-TSO-C139

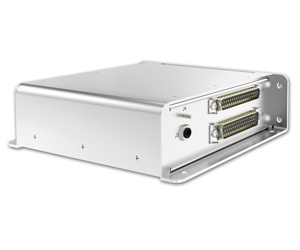

JA95-R12
Audio Summing Amplifier
12 Channel
Field configurable settings
12 Input signals adjustable from 1 Vrms to 10 Vrms
Differential audio inputs for high noise rejection
Weight: 1.68 lb. [0.77 kg] Max.
Power: 14 to 28Vdc
Approvals: TC CAN-TSO-C139
