Audio Controllers

J301A-001

Single User - 8 Transceivers - Audio Controller

Headsets: 1 low impedance or 1 high impedance


Output: 250 mW into 8 or 600 ohms


Transceivers: 8


Receivers: 6 + 4 Direct, 2 Music Inputs, 3 ICS Tie


Power: 28 Vdc @ (0.4A) Max


Legends: Removable

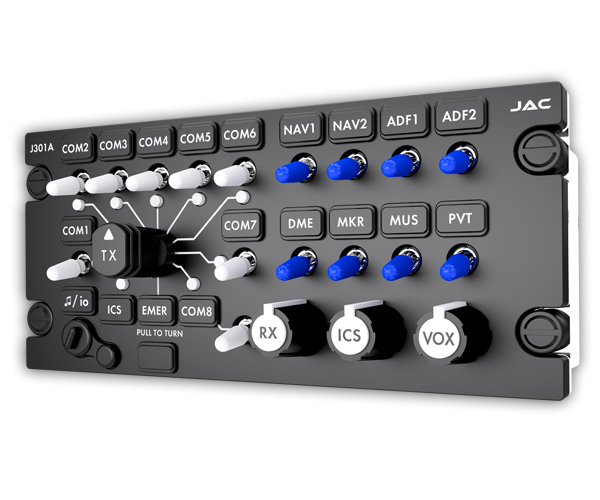

J301A-N01

Single User - 8 Transceivers - Audio Controller

NVG

Contains all the features of the J301A-001


including the following:


  NVIS compatible removable legends


  NVIS compatible removable annunciators


  Fully pin and functionally compatible with the J301A-001

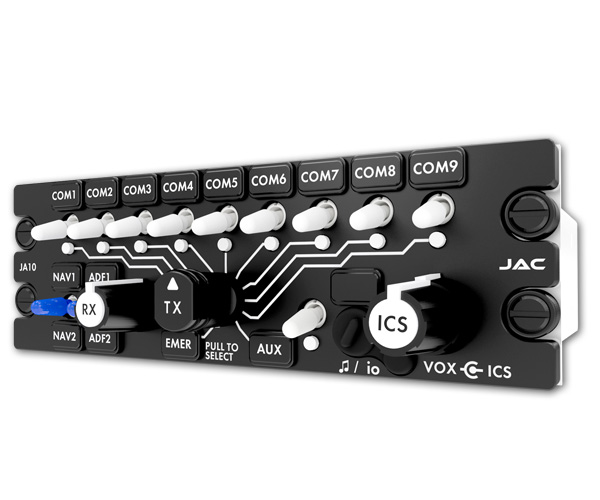

JA10-001

Eight User - 10 Transceivers - Audio Controller

Headsets: 8


Output: 250 mW into each 8 or 600 ohm phones


Transceivers: 10


Receivers: 4 + 4 Direct


Weight: 2.49 lbs [1.13 kg] MAX.


Power: 28Vdc


Legends: Removable


Contact JAC for TSO status

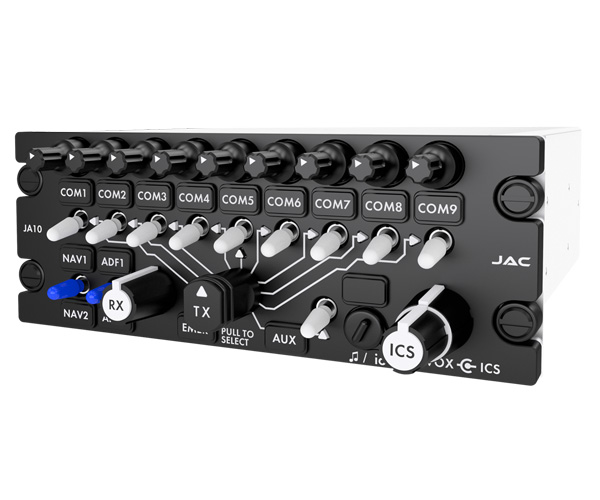

JA10-x70

Eight User - Audio Controller with RX Volume Controls

Headsets: 8


Output: 250 mW into each 8 or 600 ohm phones


Transceivers: 10


Receivers: 4 + 4 Direct


Weight: TBD


Power: 28Vdc


Legends: Removable


Contact JAC for TSO status

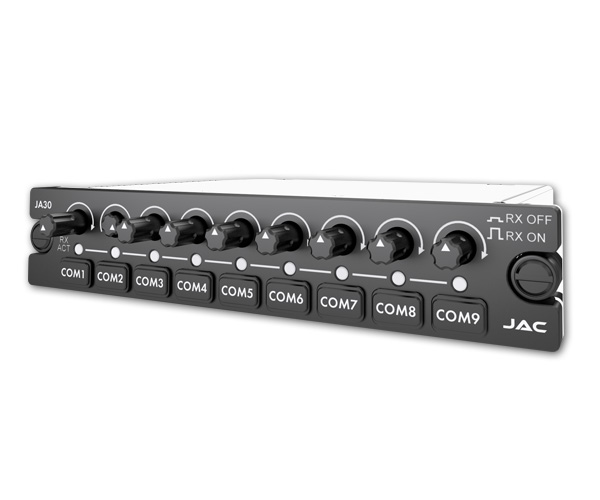

JA30-001

Volume Control Panel

Individual Volume Controls for up to nine audio channels


Receive Signal Detection Indicators


Field replaceable front panel legends


Normal and Emergency Mode

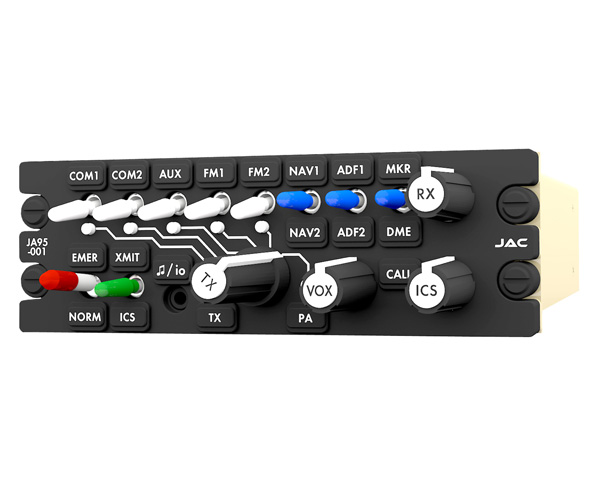

JA95-001

Seven User - 5 Transceivers +PA - Audio Controller

Headsets: 7


Output: 100 mW into each 600 ohm phones


Transceivers: 5 +PA


Receivers: 6


Weight: 1.64 lb. [0.74 kg] Max.


Power: 14 to 28Vdc


Legends: Removable | NVG Compatible Option


Approvals: FAA TSO C139 & TC CAN-TSO-C139

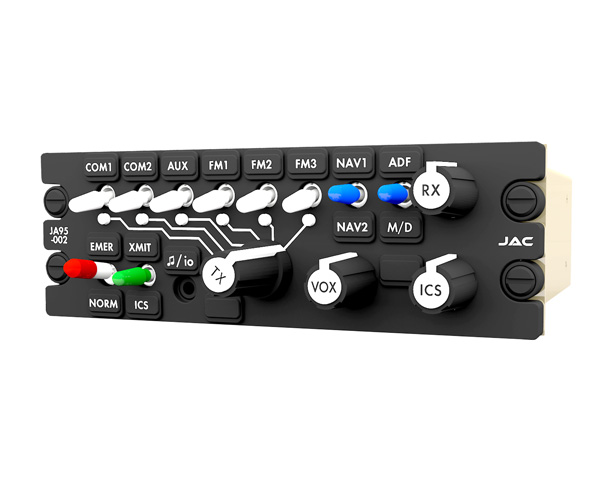

JA95-002

Seven User - 6 Transceivers - Audio Controller

Headsets: 7


Output: 100 mW into each 600 ohm phones


Transceivers: 6


Receivers: 5 switched + 2 direct audio


Weight: 1.64 lb. [0.74 kg] Max.


Power: 14 to 28Vdc


Legends: Removable | NVG Compatible Option


Approvals: FAA TSO C139 & TC CAN-TSO-C139

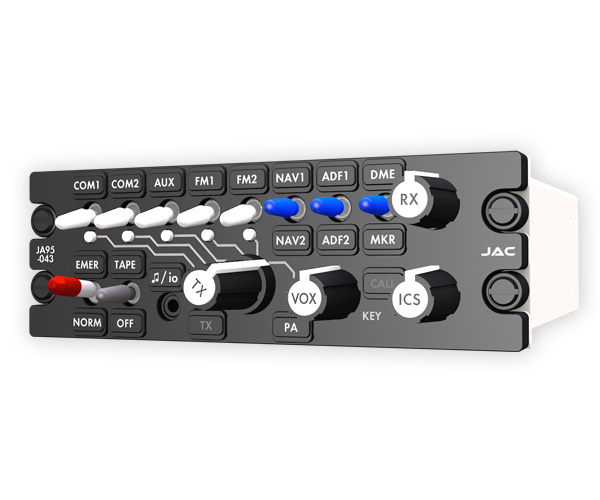

JA95-043

Six User - AMS43 Compatible - Audio Controller

Headsets: 6


Output: 100 mW into each 600 ohm phones


Transceivers: 5 +PA, Receivers: 6


Weight: 1.64 lb. [0.74 kg] Max.


Power: 14 to 28Vdc


Legends: Removable


Approvals: TC CAN-TSO-C139


Installation Kit: INST-95043

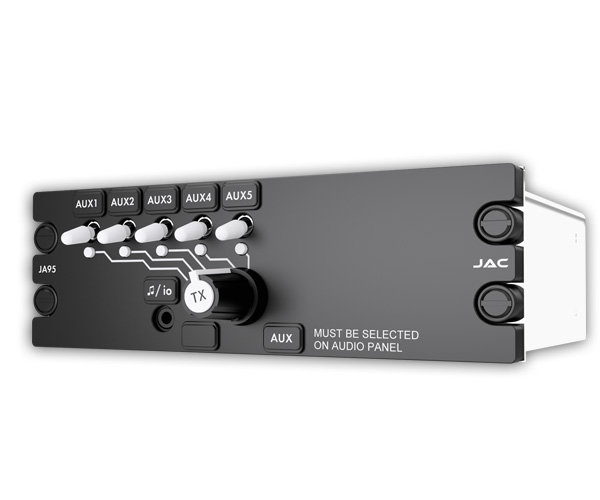

JA95-060

Audio Controller - Five Transceiver - Expander

Adjustable output and input levels


Balanced transmit mic. outputs


Transceivers: 5


Transmit annunciator


Weight: 1.64 lb. [0.74 kg] Max.


Power: 14 to 28Vdc


Legends: Removable | NVG Compatible Option


Approvals: CAN-TSO-C139

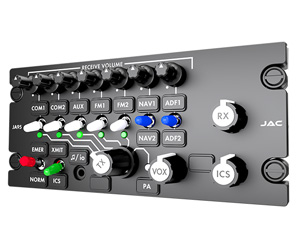

JA95-070

Audio Controller with RX Volume Controls

Headsets: 7


Transceivers: 5 + PA


Receivers: 6 switched + 1 direct audio


Weight: 2.20 lbs [1.00 kg] MAX.


Power: 14 to 28Vdc


Legends: Removable


Inputs: RX Mute and 3 Alerts


Approvals: FAA TSO C139 & TC CAN-TSO-C139

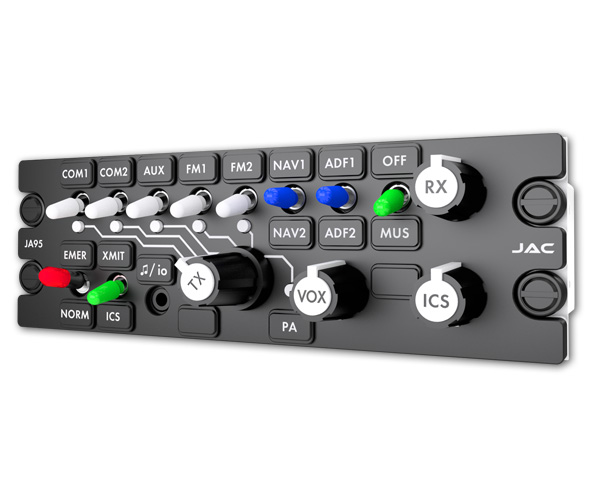

JA95-091

Audio Controller - Dual ICS Input

Headsets: 7


Output: 100 mW into each 600 ohm phones


Transceivers: 5 + PA


Receivers: 4 + 1 Direct Audio


Music switch on front panel


3 Uni-Directional ICS TIE Lines


Legends: Removable | NVG Compatible Option


Approvals: TC CAN-TSO-C139

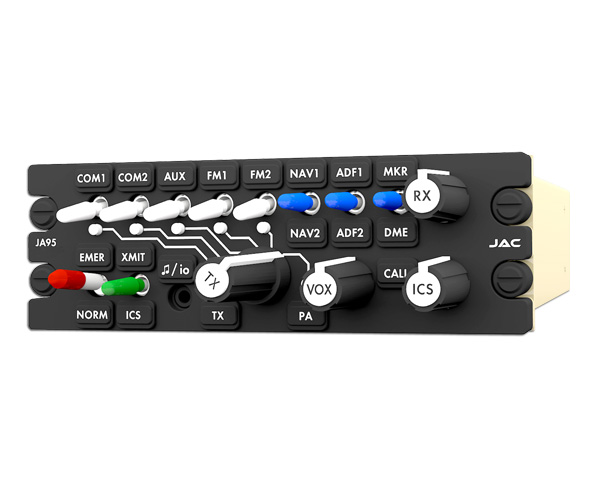

JA95-N01

Audio Controller - NVG

Contains all the features of the JA95-001


including the following:


  NVIS compatible removable legends


  NVIS compatible removable annunciators


  Fully pin and functionally compatible with the JA95-001




Approvals: FAA TSO C139 & TC CAN-TSO-C139

JA95-N02

Audio Controller - Six Transceiver - NVG

Contains all the features of the JA95-002


including the following:


  NVIS compatible removable legends


  NVIS compatible removable annunciators


  Fully pin and functionally compatible with the JA95-002




Approvals: FAA TSO C139 & TC CAN-TSO-C139

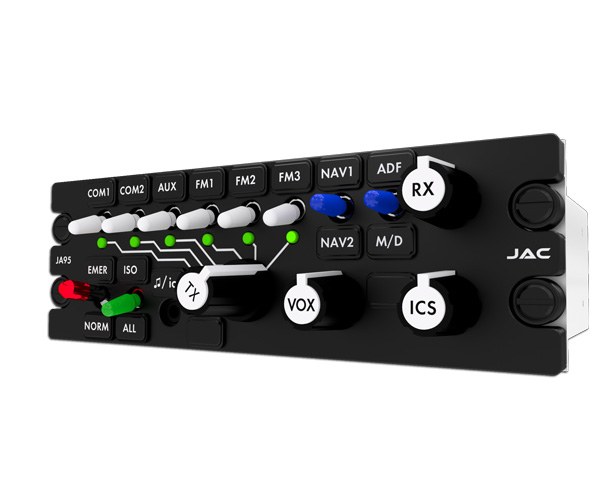

JA95-N22

Audio Controller - Flight Crew - NVG

Contains all the features of the JA95-002 including:


  NVIS compatible removable legends


  NVIS compatible removable annunciators


  The ICS ISO switch on the front panel disables the ICS Tie


  Line and activates a discrete output


  The ICS ALL switch on the front panel disables the ICS Tie


  Line and activates a discrete output


Approvals: FAA TSO C139 & TC CAN-TSO-C139

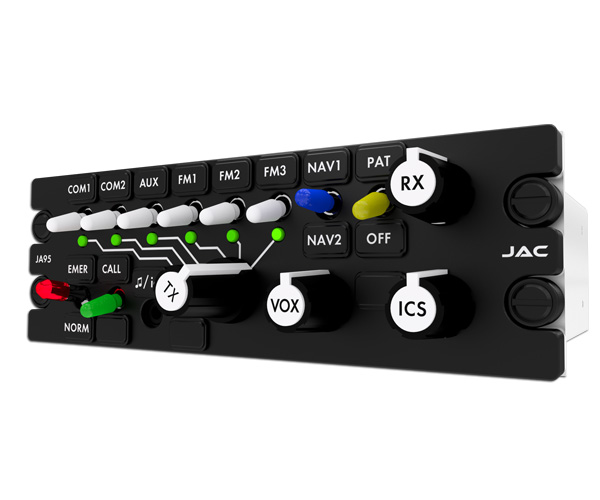

JA95-N32

Audio Controller - Med Crew - NVG

Contains all the features of the JA95-002 including:


  NVIS compatible removable legends


  NVIS compatible removable annunciators


  The PAT OFF switch on the front panel disables the phones


  audio to Patients 1 and 2.


  CALL switch on the front panel activates a discrete output.


  ISO annunciator will illuminate when the input is activated


Approvals: FAA TSO C139 & TC CAN-TSO-C139

JA95-N60

Audio Controller - Five Transceiver - Expander - NVG

Adjustable output and input levels


Balanced transmit mic. outputs


Transceivers: 5


Transmit annunciator


Weight: 1.64 lb. [0.74 kg] Max.


Power: 14 to 28Vdc


NVIS compatible removable legends


Approvals: CAN-TSO-C139

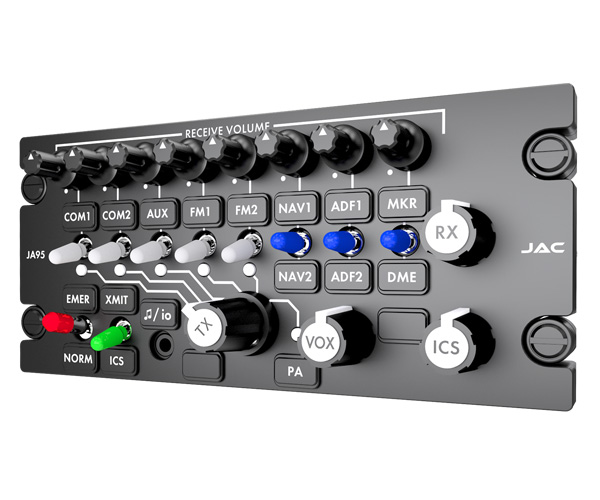

JA95-N70

Audio Controller with RX Volume Controls - NVG

Headsets: 7


Transceivers: 5 + PA


Receivers: 6 switched + 1 direct audio


Weight: 2.20 lbs [1.00 kg] MAX.


Power: 14 to 28Vdc


Legends: Removable and NVG Compatible


Inputs: RX Mute and 3 Alerts


Approvals: FAA TSO C139 & TC CAN-TSO-C139

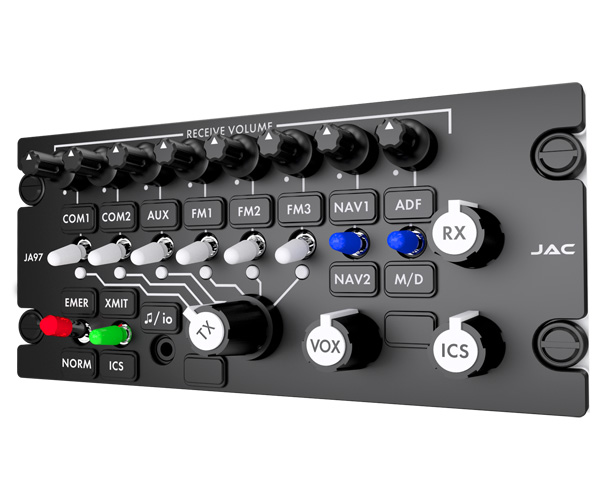

JA97-002

Audio Controller with RX Volume Controls

Headsets: 7


Output: 100 mW into each 600 ohm phones


Transceivers: 6


Receivers: 5 switched + 2 direct audio


Weight: 2.23 lbs [1.01 kg] MAX.


Power: 14 to 28Vdc


Legends: Removable | NVG Compatible Option


Volume: 8

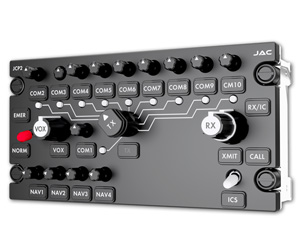

JCP2-x10

Reduced Depth Control Panel

Operates with JRAC2 Remote audio panel OR


as an Additional Controller with the JA10 Panel Mount Controller


Transceivers: Up to 10


Receivers: Up to 4


NVG option


Legends: Removable



Contact JAC for TSO status
